Hyster Forklift Hydraulic Leak: Why the Tilt Cylinder Wasn’t the Problem
Hydraulic oil was spread across the front-left fender of this Hyster H360XD. From a quick look, the conclusion seemed simple: the forklift tilt cylinder was leaking and probably needed to be resealed.
That would have been an expensive guess.
The cylinder was where the oil showed up, but it was not where the failure was. This Dickinson-area mobile forklift repair ended with no replacement cylinder, seal kit or new O-ring. The problem was a hand-loose cylinder plug.
This is a good example of why a forklift hydraulic leak should be diagnosed while the system is operating instead of judging the problem by the biggest oily component.
The complaint: a forklift tilt cylinder leaking
The service call was for a Hyster H360XD with a reported tilt-cylinder leak and a fine, high-pressure hydraulic leak on the left side of the machine.
When the technician arrived, hydraulic oil was visible across the front-left fender and concentrated around the left tilt-cylinder area. It would have been easy to order a seal kit and begin planning a much larger repair.
Instead, the next step was to reproduce the problem and find the point where fresh oil first appeared.

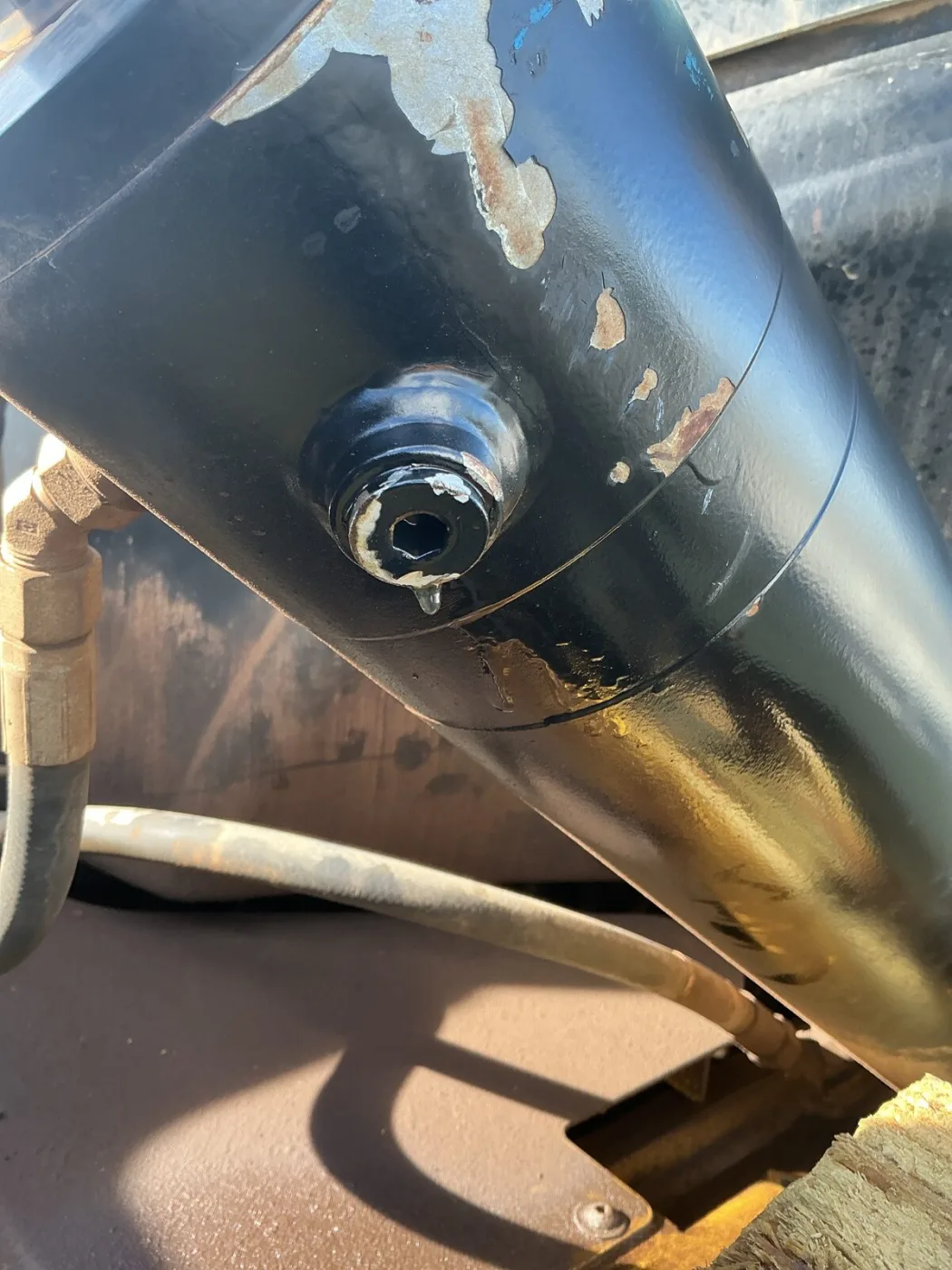

The forklift was started and the tilt function was operated while the area was observed from a safe position. With the system working, the source became clear. The oil was coming from a plug in the hydraulic cylinder, not from the rod seal, cylinder barrel, hose or hose fitting.
The plug was hand loose.
What we found inside the leaking connection
The cylinder plug was removed so its O-ring and sealing area could be inspected. The O-ring appeared serviceable and did not justify replacement.

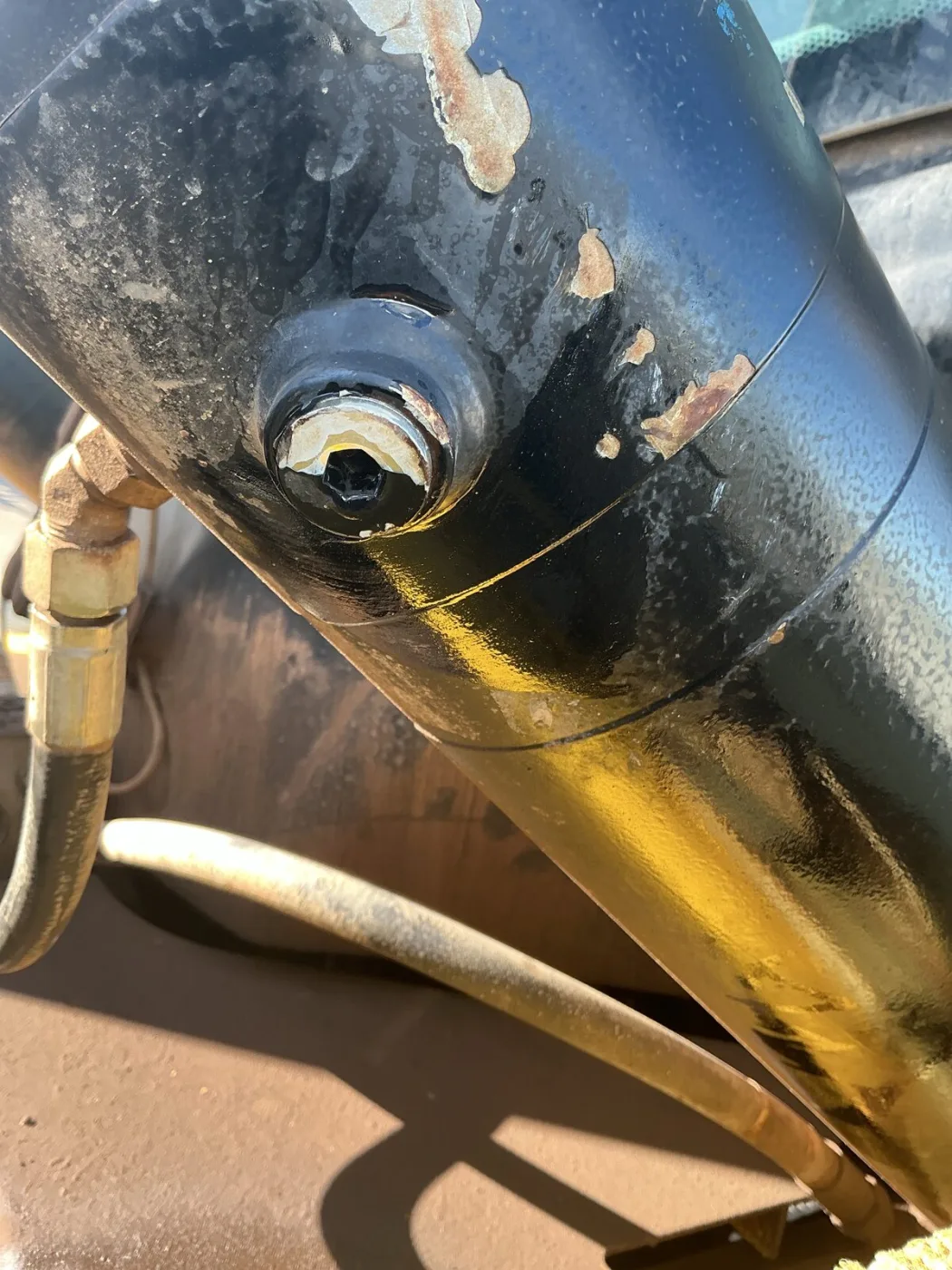

The existing plug and O-ring were reinstalled, and the plug was tightened. The technician then operated the tilt function for five minutes while watching the repaired area. No leak was present during that verification test.
The area was cleaned, and the corresponding plug on the opposite tilt cylinder was checked to make sure it was tight.
No parts were replaced because the evidence did not show that any parts had failed.
Why a hydraulic leak can make the wrong part look bad
Hydraulic oil rarely stays where it escapes. Gravity and machine movement spread it across nearby components. Airflow can move a fine mist, and dirt can make a small leak look much larger.
That creates a common problem during forklift hydraulic leak diagnosis: the wettest component is not always the failed component.
Oil around a forklift tilt cylinder can come from several places, including:
- The rod and gland sealing area
- A hose or tube connection
- A hydraulic fitting
- A port plug and its O-ring
- A damaged line near the cylinder
- The cylinder body itself
Before removing a cylinder, the leak should be traced to the connection or sealing surface where fresh oil begins.
How the forklift tilt system works
The tilt cylinders move the mast forward and backward. When the operator selects a direction, hydraulic pressure acts on one side of the piston inside each cylinder. The rod moves, the mast changes angle, and oil from the opposite side of the piston returns through the hydraulic circuit.
Pressure can expose a sealing problem that is not visible while the forklift is shut off. A parked machine may confirm that oil is present without revealing where it escaped.
Controlled function testing reproduced the condition that caused fresh oil to appear and helped isolate this Hyster forklift hydraulic leak.
Why the O-ring inspection mattered
The plug still needed to be removed. Tightening a connection without inspecting it can hide a damaged O-ring, damaged threads or a sealing-surface problem.
If an O-ring is cut, flattened, hardened or missing, tightening the plug may not stop the leak. Damaged threads or a damaged port can require a different repair.
In this case, the O-ring appeared serviceable. That supported reusing it and correcting the loose plug. If the inspection had shown damage, the repair decision would have changed.
Diagnosis means replacing parts when the system’s condition shows they are needed.
Testing the repair was just as important
A repair is not complete until the original complaint has been tested again.
After the plug was tightened, the tilt function was operated for five minutes with no leak present.
The matching plug on the opposite cylinder was also checked. One loose plug does not mean the other is loose, but checking the matching component is practical when both experience similar pressure, vibration and movement.
Cleaning the area gave the operator a better baseline for spotting fresh oil later.
A serious safety issue, even when the repair is small
A small hydraulic leak can still be dangerous. Fluid escaping through a pinhole or loose high-pressure connection may be nearly invisible, and it can penetrate skin. Never use a hand or finger to search for a hydraulic leak while the system is pressurized.
Use manufacturer-approved test procedures, suitable leak-detection methods and proper guarding. Stay clear of the mast, attachment, linkage and other pinch or crush points.
If hydraulic fluid penetrates the skin, treat it as a medical emergency even if the injury looks minor.
What the operator can tell the technician
Good information from the operator can make mobile forklift repair faster and more accurate. When reporting a hydraulic leak, note:
- Which function was moving when the oil appeared
- Whether it leaks only during movement or while holding a load
- Whether the leak is a drip, stream, spray or fine mist
- Where fresh oil first appeared
- Whether the mast drifts or responds differently than normal
- Whether the hydraulic reservoir level has dropped
Do not continue cycling the function just to gather more information if the leak is spraying, fluid level is low or the machine cannot be operated safely.
Diagnose the forklift hydraulic leak before replacing the cylinder
This Hyster H360XD looked like it had a failed tilt cylinder. Careful testing showed that the cylinder assembly did not need to be removed or rebuilt. The actual problem was a loose plug with a serviceable O-ring.
The plug was inspected, reinstalled and tightened. The forklift’s tilt function was operated for five minutes with no leak present. The opposite plug was checked, the area was cleaned, and no unnecessary parts were installed.
That is the kind of equipment-level troubleshooting Mondak Equipment & Hose brings to forklift hydraulic repair: confirm the complaint, safely reproduce the problem, locate the exact failure point, make the supported repair and test the result.
