Electric Forklift Battery and Load-Wheel Problems: One Truck, Two Diagnostic Paths

A recent Hyster reach-truck repair in the Williston area showed why each complaint needs its own diagnostic path. The truck’s battery would accept a charge but would not stay charged for long. The operator also reported a grinding noise while traveling. Inspection found two separate problems: significant battery concerns and four deteriorated load wheels.

Documented battery findings

The battery complaint was that the unit would charge, then lose usable power quickly. Inspection found dry cells in the industrial battery. After water was added to the cells, individual cell-voltage readings ranged from approximately 1.7 volts to 3.4 volts.

That spread is important. Cells in the same battery should operate as a balanced group. Large differences between cell readings can point to an uneven or damaged battery condition and warrant further testing by qualified personnel. Adding water may correct a low electrolyte level, but it does not automatically restore a cell that has already been damaged or explain every charging and runtime problem.

The inspection also documented approximately 10 volts between the battery and its metal case. A battery case should not become part of the electrical path. Voltage measured to the case can indicate contamination, electrolyte residue, damaged insulation, or another unwanted conductive path. That is not simply a performance concern; it is a reason to remove the battery from normal service and have the battery and charging system evaluated safely.

The battery condition was documented separately from the wheel repair. That distinction matters because replacing worn wheels will not correct an internal battery problem, and servicing a battery will not eliminate a mechanical grinding noise.

Why industrial battery condition matters

Electric material-handling equipment depends on a large traction battery that supplies the energy for travel, steering, controls, and hydraulic functions. The battery is made up of multiple cells connected together. If one or more cells cannot maintain voltage under load, the truck may run for a short time after charging and then lose performance much sooner than expected.

Battery problems can show up as short runtime, slow travel, reduced lift performance, repeated low-voltage warnings, unusually long or short charge cycles, heat, odor, corrosion, or inconsistent operation. Those symptoms do not prove the battery itself is the only problem. Charger output, connectors, cables, grounds, control circuits, and the truck’s current draw may also need to be checked.

Water level also has to be handled correctly. Overfilling can push electrolyte out during charging, while operating with exposed plates can permanently damage a battery. Maintenance should follow the battery and charger manufacturer’s instructions and be performed in a designated area with appropriate ventilation, protective equipment, eyewash capability, and spill-control provisions. OSHA’s powered-industrial-truck requirements and battery-charging guidance address these precautions.

Operators should never treat a battery case with measurable voltage, visible damage, heavy corrosion, active leakage, excessive heat, or a strong sulfur odor as a routine top-off. The truck should be parked safely and the condition reported for qualified inspection.

The separate grinding complaint

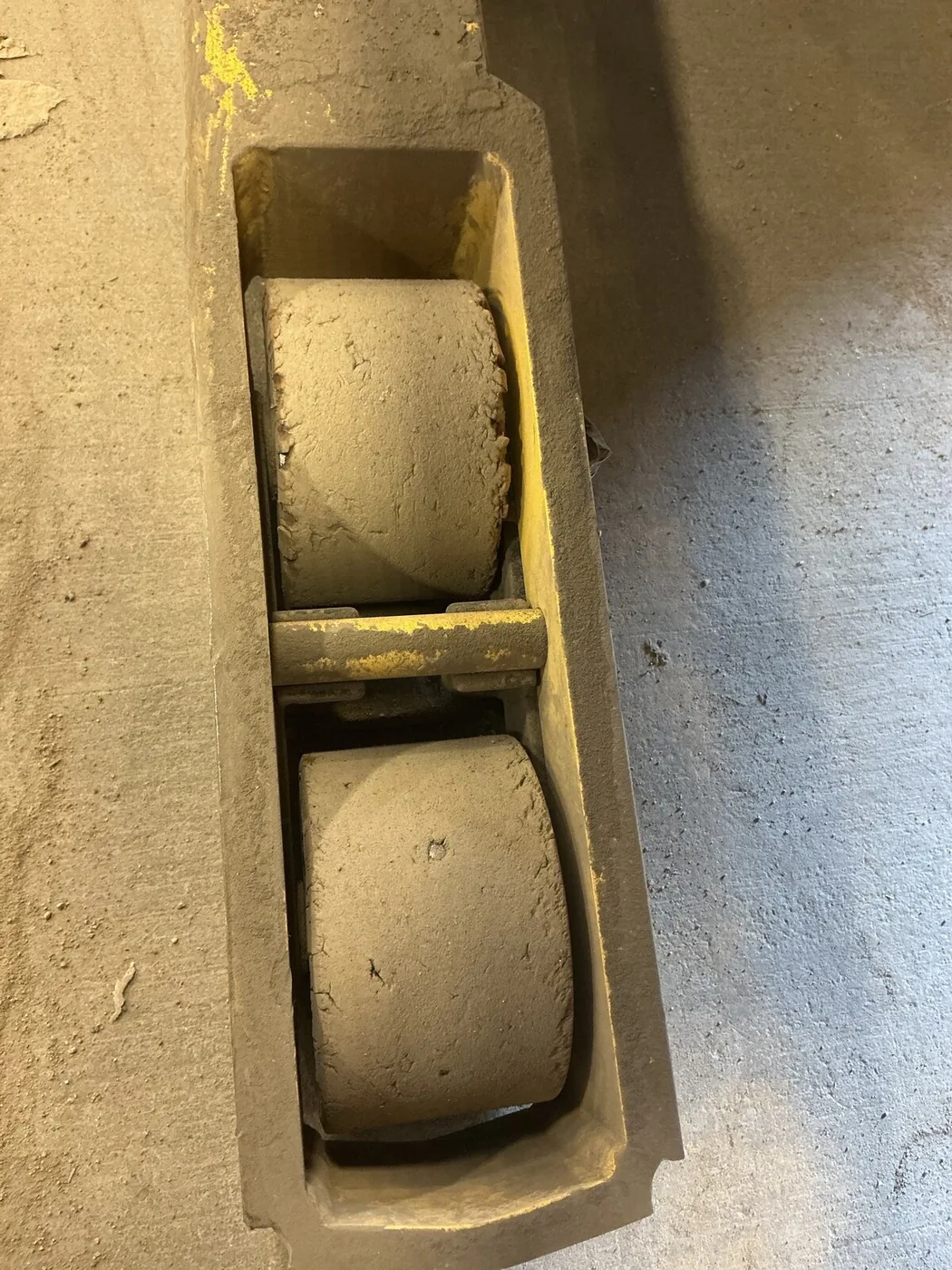

The truck also produced a grinding noise during travel. A mechanical inspection found four deteriorated load wheels. Load wheels carry the fork-side weight of a reach truck and repeatedly roll over joints, debris, dock plates, and uneven floor surfaces. As their tread material breaks down or their bearings wear, the truck may become noisy, rough, or difficult to control precisely.

For this repair, bearings were installed in the replacement wheels before the wheel assemblies were fitted to the truck. Replacing all four affected wheels addressed the documented mechanical source rather than trying to connect the noise to the battery complaint.

Worn load wheels can create more than an annoying sound. Flat spots, missing material, damaged bearings, or unequal wheel diameters can increase vibration and shock through the truck. That can affect ride quality, load stability, component wear, and the operator’s ability to position the truck smoothly. A grinding, clicking, thumping, or rough-rolling complaint deserves inspection before the wheel deteriorates further.

Why the two problems should not be combined

Both concerns affected the same truck, but they required different evidence and different corrective actions.

• The short-runtime complaint required battery and electrical inspection.
• The cell readings and voltage to the case documented a battery condition requiring further attention.
• The grinding complaint required inspection of the truck’s mechanical running gear.
• The visibly deteriorated load wheels provided a separate mechanical cause.
• The wheel replacement did not prove the battery concern had been resolved.

This is a useful example of equipment-level troubleshooting. A technician should not force every symptom into one explanation just because the symptoms appeared around the same time. The better approach is to confirm each complaint, test the relevant system, document the findings, and verify each repair independently.

What operators can report before service

Good information from the operator can shorten diagnostic time. For a battery-runtime complaint, note whether the truck begins the shift with a completed charge, how long it operates before performance drops, whether the problem changes under heavy use, and whether any warning lights or codes appear. Also report heat, odor, corrosion, leaking electrolyte, damaged connectors, or unusual charger behavior.

For a travel noise, note whether it occurs in both directions, changes while turning, gets faster with travel speed, or becomes worse over floor joints. A slow walk-around may reveal chunked wheel material or a flat spot, but the truck should not be operated merely to reproduce a serious grinding noise.

OSHA requires powered industrial trucks to be examined before being placed in service and removed from service when a condition adversely affects safety. A pre-operation inspection is not a substitute for diagnosis, but it gives operators a chance to catch damage before it becomes a larger failure.

Diagnose the complete machine

This Hyster reach truck did not have one problem wearing two disguises. It had an electrical energy-storage concern and a mechanical running-gear concern at the same time. Treating them separately prevented a wheel repair from being mistaken for a complete solution.
