Hyster Order Picker Won’t Move: When the Brake-Release System Is the Real Problem
An electric order picker that powers up but will not travel can send troubleshooting in several directions. The battery, travel controls, safety interlocks, traction controller and drive motor may all appear to be possible causes.
Sometimes, however, the electrical system is not the problem.
During a recent repair in Williston, a Hyster order picker powered on normally but would not move forward or backward. Inspection found a mechanical and hydraulic failure within the drive-motor brake-release system.
The repair illustrates an important diagnostic principle: confirming that a machine has power does not prove that every system required for movement is operating. Before replacing electrical components, the technician must determine whether the parking brake is actually releasing.
Documented findings from the Hyster repair
The reported problem was straightforward: the order picker powered up but would not travel in either direction.

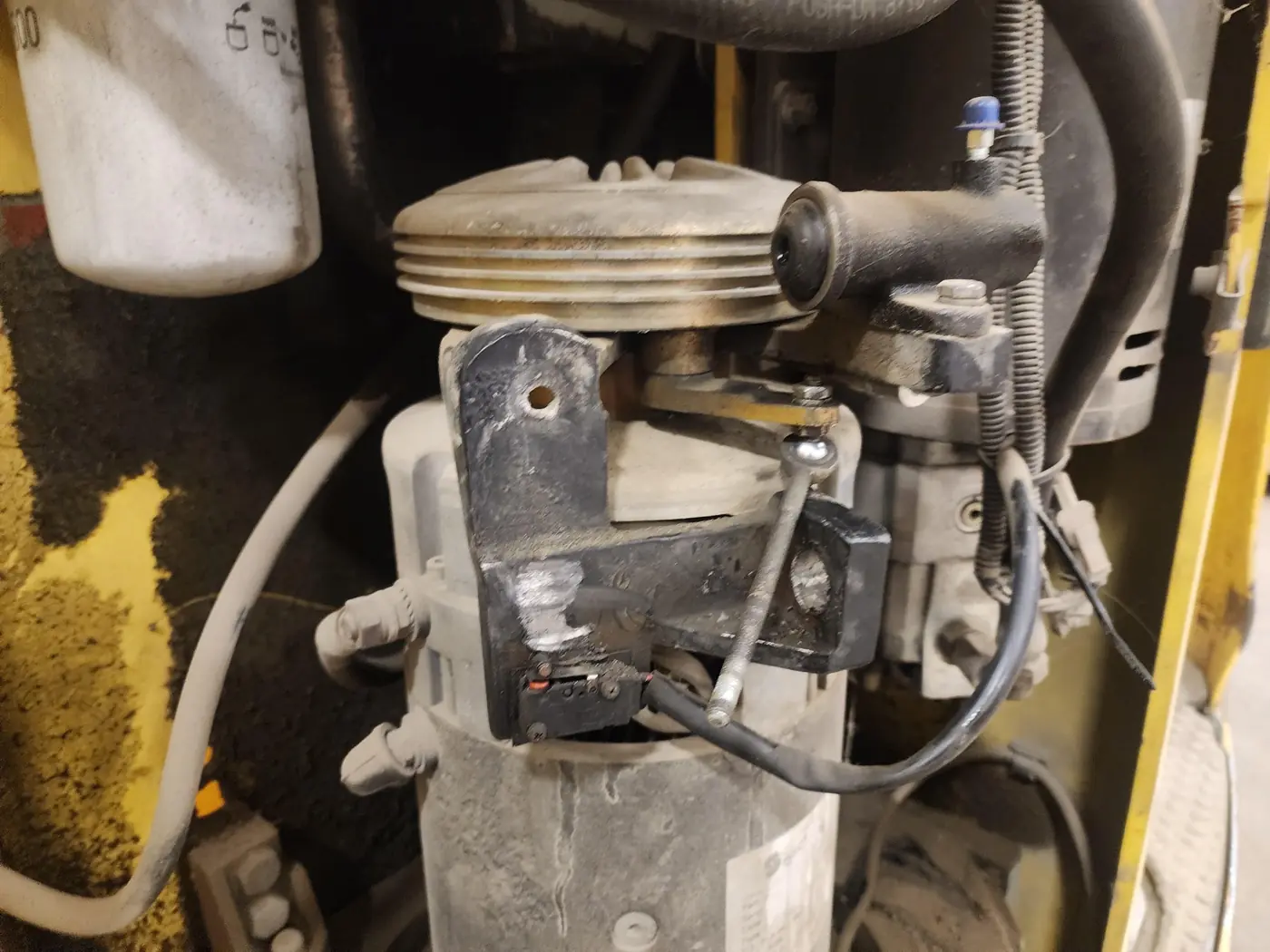

Inspection around the drive-motor brake assembly revealed multiple related problems:
- The pin securing the motor-brake lever had sheared.
- The threaded hole for the pin was damaged.
- The slave-cylinder push rod was missing.
- The brake-fluid reservoir was empty.
These findings explained why the machine could power on without moving. The components needed to transfer movement through the brake-release linkage were no longer connected and functioning correctly.
The damaged threaded hole was repaired with a thread insert so the replacement pin could be secured correctly. The required push rod was initially unavailable, so the machine waited for the correct part instead of receiving an improvised linkage component.

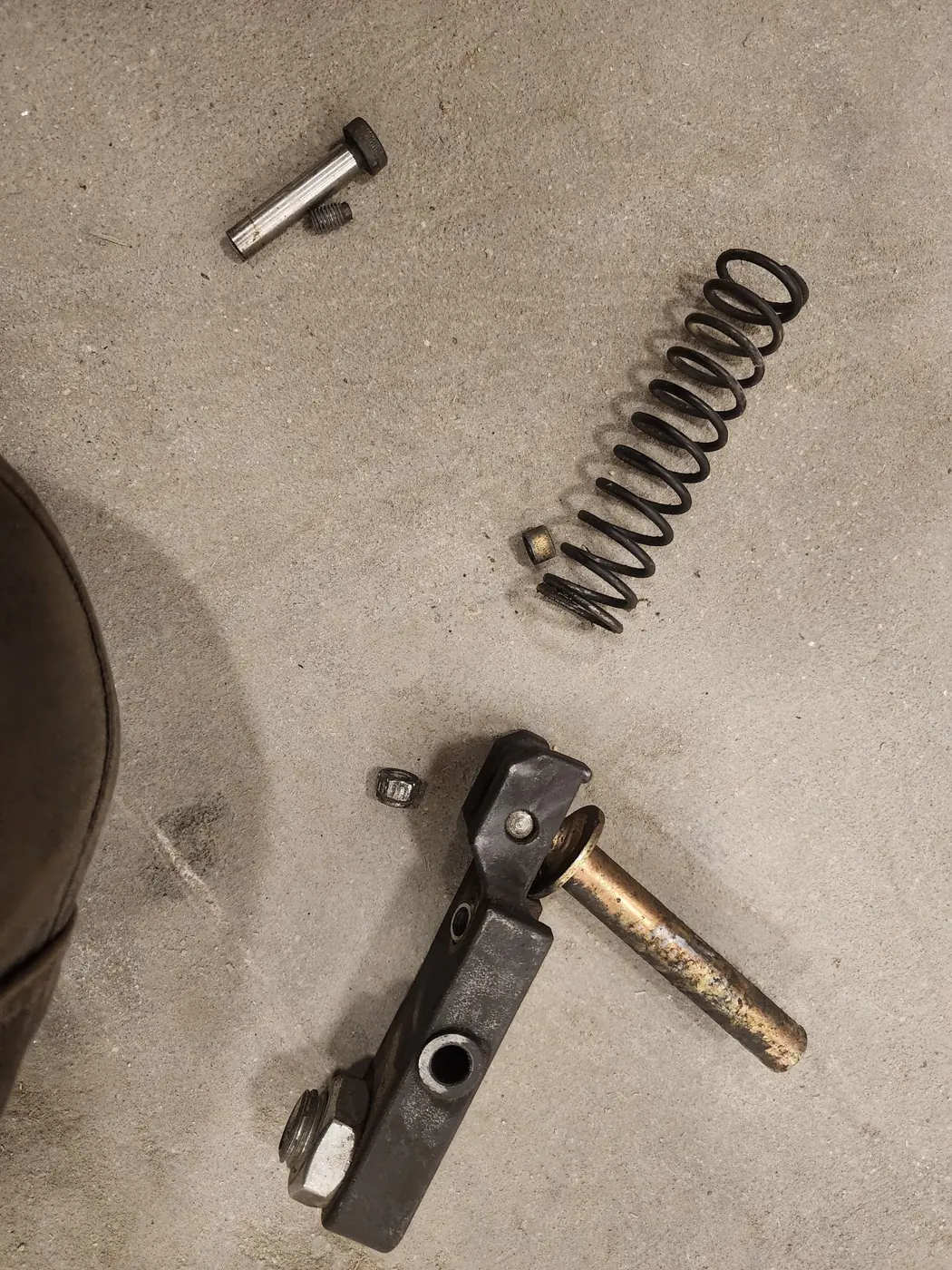

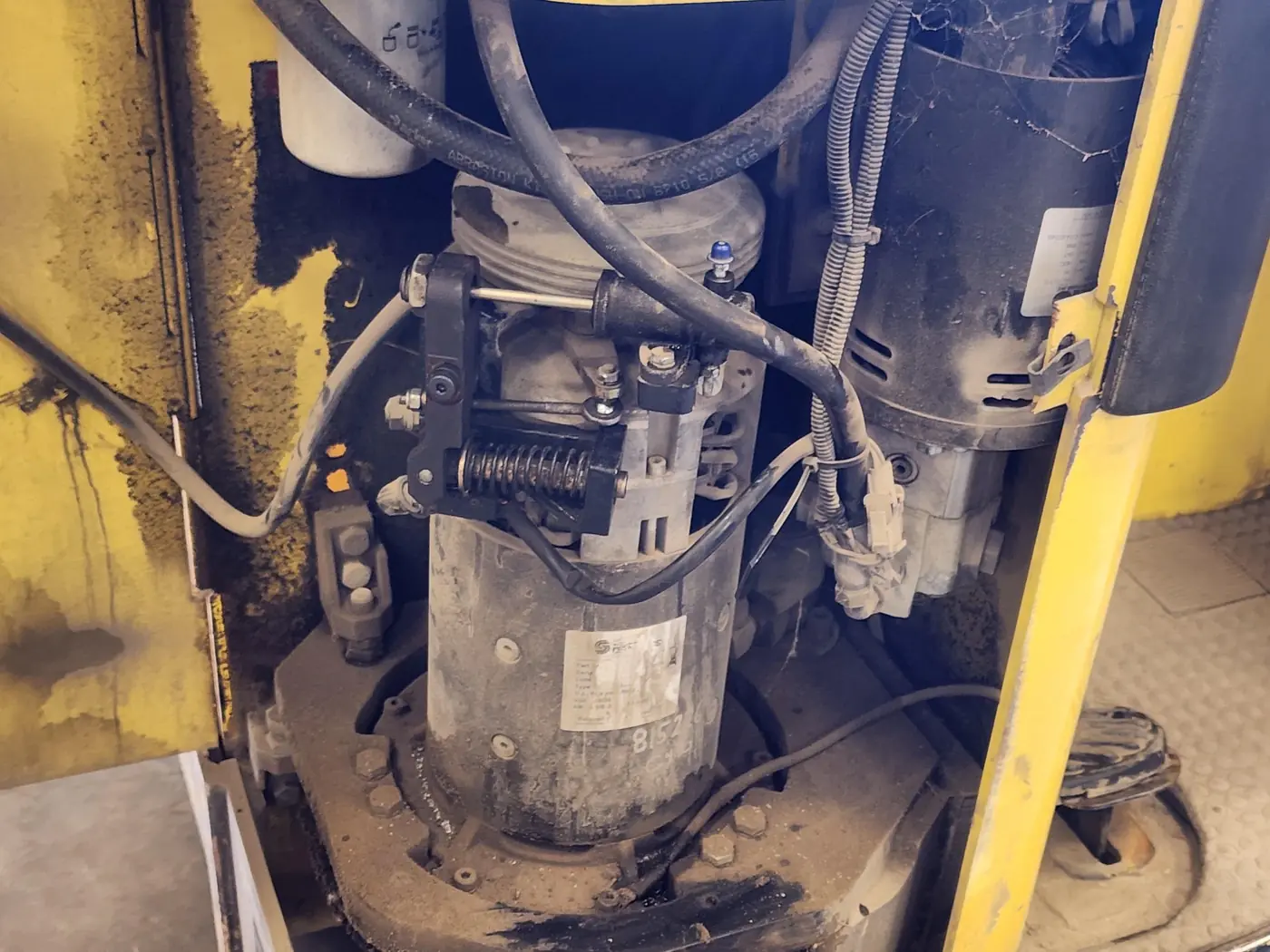

During the final service visit, the technician opened the drive-motor compartment and reinstalled the spring rod, lever and new pin bolt. Pressure was bled from the brake cylinder, and the new push rod was installed between the cylinder and lever.
The brake reservoir was filled, and the master cylinder was bled to remove air from the system. The brake mechanism was then adjusted and tested. After correct operation was verified, spilled fluid was cleaned and the compartment was closed.
The order picker was returned to service only after its travel and brake operation had been checked.
How a brake problem can become a no-travel problem
The brake system is not separate from the machine’s ability to travel. The brake must release correctly before the drive system can move the equipment as intended.
On many electric industrial trucks, a spring, lever, hydraulic cylinder or other actuator keeps the brake applied or releases it when the proper operating conditions are met. The exact arrangement varies by manufacturer and model, but the principle is similar: movement from the actuator has to reach the brake mechanism through a complete, correctly adjusted linkage.
If a pin shears, a push rod falls out or a lever becomes disconnected, the brake may remain applied even though the machine’s electrical system is on.
From the operator’s position, the problem may look electrical. The display illuminates and the controls appear ready, but the machine will not move. Replacing a controller, travel switch or motor without checking the brake system would not correct a mechanical failure holding the brake on.
That is why no-travel complaints require complete-system diagnosis.
Why the empty brake reservoir mattered
The empty reservoir was another significant finding, but it did not identify the original cause by itself.
A hydraulic brake-release circuit depends on fluid to transfer force. If the reservoir is empty, air can enter the system. Air compresses, so cylinder movement can become weak, inconsistent or nonexistent.
Simply adding fluid is not enough once air has entered the circuit. The system must be bled correctly, filled to the proper level, adjusted and tested.
The service notes do not document why the reservoir became empty, so it would be inaccurate to claim a specific leak caused it. What could be verified was that the reservoir was empty during inspection and that filling and bleeding the system were necessary parts of the repair.
Low brake fluid should always be treated as a condition requiring further inspection, not something to correct repeatedly without determining why the level changed.
Why repairing the damaged threads was important
The sheared pin did more than disconnect the lever. Its mounting threads were also damaged.
Installing another pin into compromised threads could leave the linkage loose or allow the new fastener to pull out. That could result in another no-travel condition or unreliable brake operation.
A thread insert restored the attachment point so the new pin could be secured properly. This allowed the original assembly to be repaired without replacing a larger component that testing had not shown to be defective.
The correct replacement push rod was equally important. Brake components transfer force through specific geometry and adjustment. Substituting an improvised rod could change the amount of cylinder or lever travel and create a safety problem.
Waiting for the correct component was part of completing the repair correctly.
Symptoms operators should report
A brake-release problem can produce symptoms that resemble an electrical or drive-system failure. Operators and supervisors should report details such as:
- The machine powers on but will not move in either direction.
- The machine attempts to move but feels as though the brake is still applied.
- Travel is intermittent or changes after the machine has been sitting.
- Brake-pedal or lever feel has changed.
- The brake-fluid reservoir is low or empty.
- A spring, rod, pin or lever appears loose, bent or disconnected.
- Brake fluid is visible around the drive assembly.
- The machine makes unusual noises when travel is selected.
Operators should not continue applying travel power to force the machine to move. They also should not bypass a brake, switch or safety interlock to test whether the machine will travel.
If the brake does not release normally, remove the equipment from service until it can be inspected.
Preventive inspection can catch problems earlier
Brake linkage is exposed to repeated movement, vibration, dirt and mechanical load. Routine inspection can help identify wear before the machine becomes disabled.
Depending on the manufacturer’s maintenance instructions, an inspection may include checking:
- Pins, fasteners and pivot points
- Push rods, springs and levers
- Brake-fluid level and condition
- Hydraulic connections and evidence of leakage
- Linkage adjustment
- Unusual free play or binding
- Brake holding and release operation
A loose pin or changing fluid level may provide an early warning. Documenting those changes gives the repair technician useful information and may prevent a more disruptive failure.
Diagnose the complete machine before replacing parts
This Hyster order picker did not need someone to guess which electrical component might prevent travel. It needed the brake-release system inspected as part of the complete drive system.
The sheared pin, damaged threads, missing push rod and empty reservoir were repaired with the correct hardware, a thread insert, proper bleeding and system adjustment. Operation was then verified before the machine returned to service.
