Trailer Inspections and the Small Seal That Needed Attention
A trailer inspection is an opportunity to find the small problems that are easy to overlook between jobs. Lights, brake operation, and the condition of the wheel ends each tell part of the story. Looking at those systems together helps the owner understand what needs attention before the next haul.
During a recent flatbed trailer inspection, Mondak Equipment & Hose found a dry, cracked O-ring on a hub cap. The job also involved checking the lights, investigating an initial brake-test result, and verifying brake and breakaway operation with the tow vehicle connected. The photos from the job show the deteriorated seal and the hub during service.
What the inspection found
The lighting check confirmed that the trailer lights and turn signals operated. The first brake test, performed with a test box, did not produce the expected response. The technician inspected the wiring, connections, and test setup before having the trailer connected to the tow vehicle. With that connection made, the brakes tested normally and the breakaway function operated.

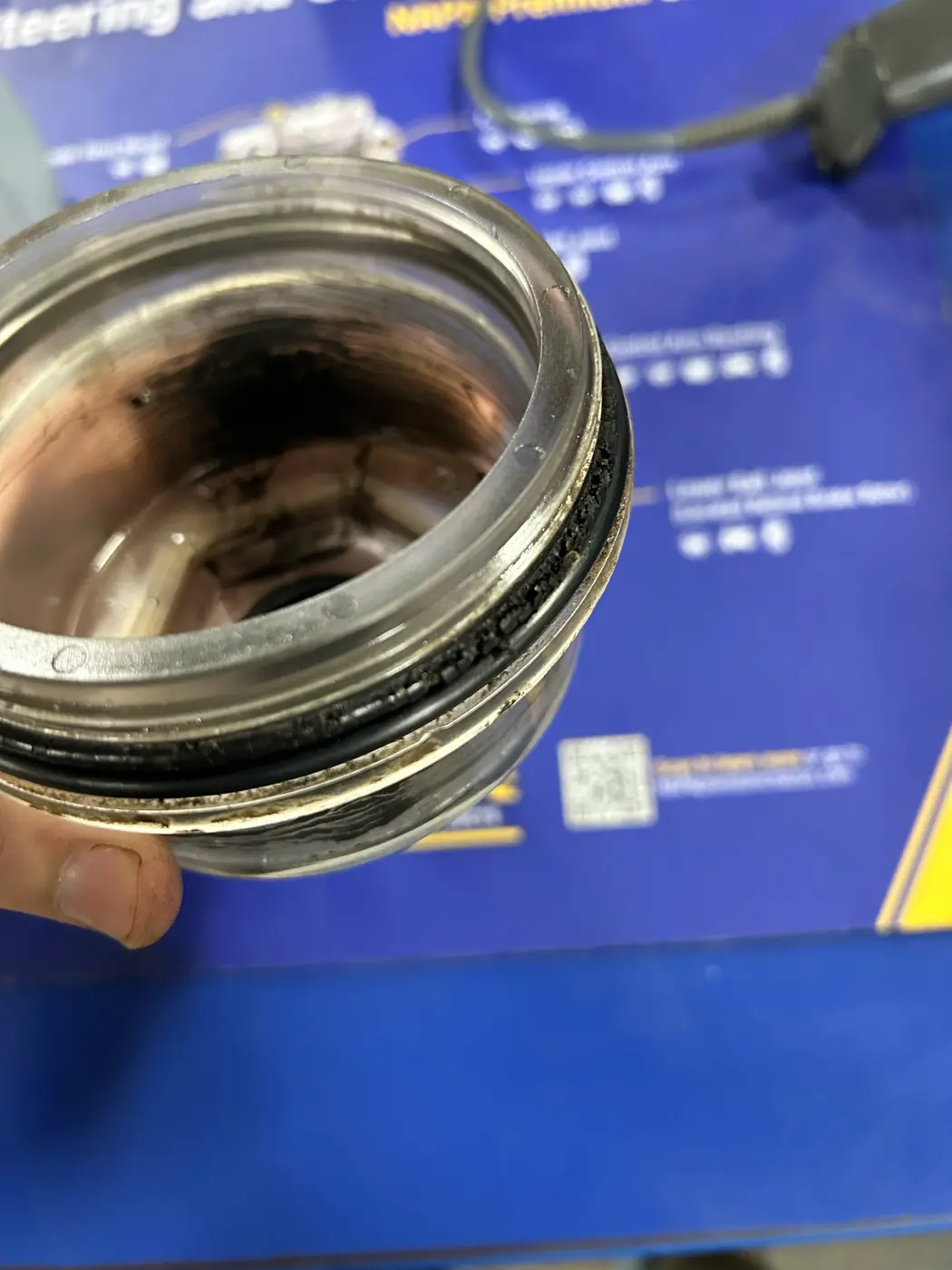

Attention then turned to the hub. The O-ring was dried out and cracked, a condition visible in the close-up photograph. The technician replaced the O-ring and replenished the hub oil. That was the documented wheel-end repair on this visit.
Finding that deterioration during an inspection created a clear repair task: replace the damaged sealing ring and attend to the lubricant. The parts involved were small, but the work still required identifying the component and checking its condition. On equipment that is expected to stay available, those routine details deserve a place on the service list.
Why hub condition deserves attention
An oil-lubricated wheel end depends on the correct lubricant and sound sealing components. The hub cap provides access to part of that assembly, and its condition belongs in the inspection alongside lubricant level and signs of leakage. A damaged sealing ring deserves attention even when the repair itself is relatively small.
Hendrickson's preventive-maintenance guidance includes checks for lubricant level and appearance, leaks at hub caps and wheel seals, hub-cap integrity, and smooth wheel rotation. Its procedures apply to its own equipment; the correct inspection and service requirements for any trailer must come from the manufacturers of the components actually installed. Hendrickson maintenance guidance
That distinction is especially useful in mixed fleets. Two trailers may look similar from the outside while using different wheel-end arrangements. The lubricant, fill procedure, service intervals, and bearing requirements should be identified for the specific assembly. A photo of an oil-filled hub is not a universal filling or adjustment guide.
Follow the test result through to an answer
The brake check on this job illustrates another part of equipment diagnosis: an unexpected result needs investigation. The first test did not demonstrate normal brake operation. The technician checked the connections and repeated the evaluation with the tow vehicle attached. The brakes then operated during the test, and the breakaway function was verified separately.
Changing the test setup provided another point of comparison. The useful outcome was verified brake operation under the conditions tested. If an intermittent concern returns, recording the connections and conditions around each test gives the next diagnostic step a defined starting point. It also keeps the discussion focused on evidence when deciding whether a component needs replacement.
For an owner or fleet manager, the practical lesson is to describe the conditions around a problem. Does it happen with one truck or every truck that tows the trailer? Is it intermittent? Did it begin after work on a connector or another repair? Those observations give the technician a more useful starting point than a request to replace a suspected component.
Make inspection findings useful to the fleet
A good inspection should leave the person scheduling equipment with clear information. What was found? What was repaired? What still needs a decision? Photos help connect those answers to the physical condition of the trailer. In this case, the close-up shows the O-ring deterioration that prompted the repair.

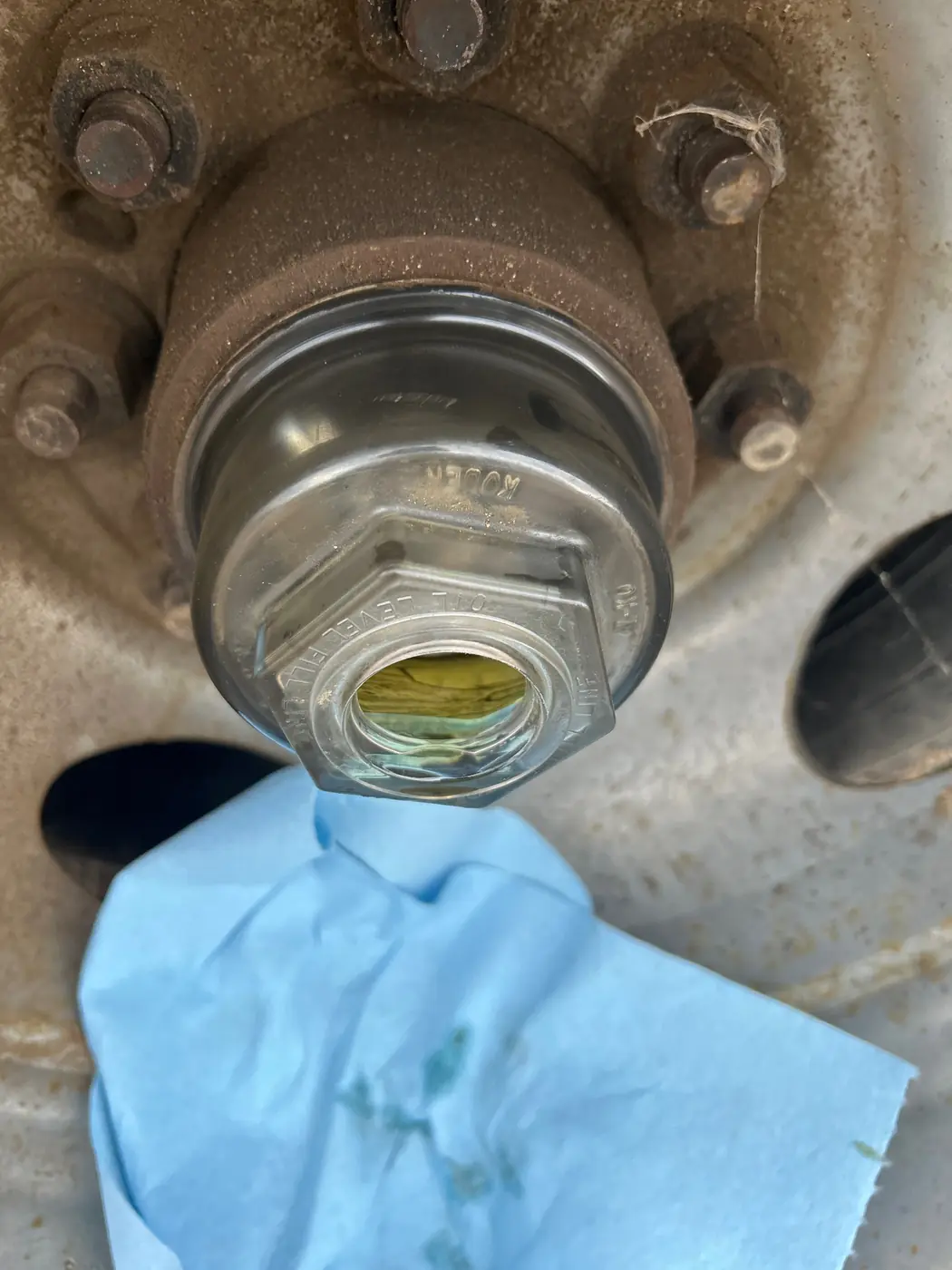

The photographs show two stages of the work: the deteriorated O-ring on the removed cap, and the hub during lubrication service. They help explain where the finding was made and why the sealing component received attention. Pairing photographs with a plain-language repair description makes that information easier for the person approving or scheduling the work to use.
For a working fleet, that documentation also gives the office something useful to reference later. If a similar concern returns, the previous finding, replacement, and test result can be reviewed. It becomes easier to explain the next service request without relying on someone's memory of which trailer was worked on.
What to tell the shop before a visit
Start with the trailer's make, model, location, and the concern you have noticed. Explain whether it is used regularly or has been parked, which vehicle normally tows it, and when it needs to be available again. If there is an intermittent brake complaint, arrange for the usual tow vehicle to be available when practical.
Share recent repair history and any previous findings. A photo of a visible concern can help the office prepare, but it cannot establish the condition of parts hidden inside an assembly. Let the technician determine what inspection or testing is needed. Unresolved braking concerns or lubricant loss need assessment before the trailer goes back into service.
Ask for the work to be separated into the concern being diagnosed, the repair being recommended, and any additional maintenance findings. That keeps the service discussion specific and helps you schedule the next step around the equipment you actually need.
For multiple trailers, keep each unit's findings attached to its own service history. A fleet-wide reminder to check the trailers is useful, but an equipment-specific record tells you which seal was replaced, which concern was evaluated, and which unit still needs attention. That is information the next driver and the office can act on.
Plan service around the equipment you operate
This inspection brought together a small seal repair and a brake check that needed follow-through. Both required attention to the actual condition of the equipment. That is the approach Mondak brings to trailer service, truck repair, and equipment maintenance.
Mondak Equipment & Hose has shops in Glendive and Williston, with mobile service coverage that also includes Dickinson, Bismarck, and Billings. Contact us with your location, equipment details, and the problem you are seeing. We can discuss the work needed and arrange service around your fleet's operating schedule.
