Hyster Order Picker Hydraulic Pump Motor Stalling: Why the Motor Wasn’t the First Part to Replace
When an electric order picker stops lifting correctly and its hydraulic pump motor stalls under load, the motor is an obvious suspect. It is also an expensive component to condemn without testing the complete power circuit first.
A recent Hyster N30XMR3 order-picker repair at Mondak Equipment & Hose in Williston showed why that distinction matters. The symptoms pointed toward a struggling hydraulic pump motor, but the documented inspection found problems in the high-current electrical path and at the motor brushes.
The repair centered on inspecting those components, cleaning the affected connections, reassembling the system and verifying operation under load before deciding whether the pump motor had failed.
That process turned a symptom that looked like a major component failure into an electrical-diagnostic job.
The documented service problem
The Hyster order picker’s hydraulic pump motor was stalling instead of operating correctly under hydraulic demand.
On an electric order picker, the pump motor converts electrical energy from the battery into the mechanical power needed to drive the hydraulic pump. When the operator requests a lift or another hydraulic function, the motor must receive enough voltage and current to produce the necessary torque.
A motor that stalls can certainly have an internal failure. However, the same symptom can occur when the electricity cannot travel efficiently from the battery to the motor.
The work-order inspection documented two important conditions:

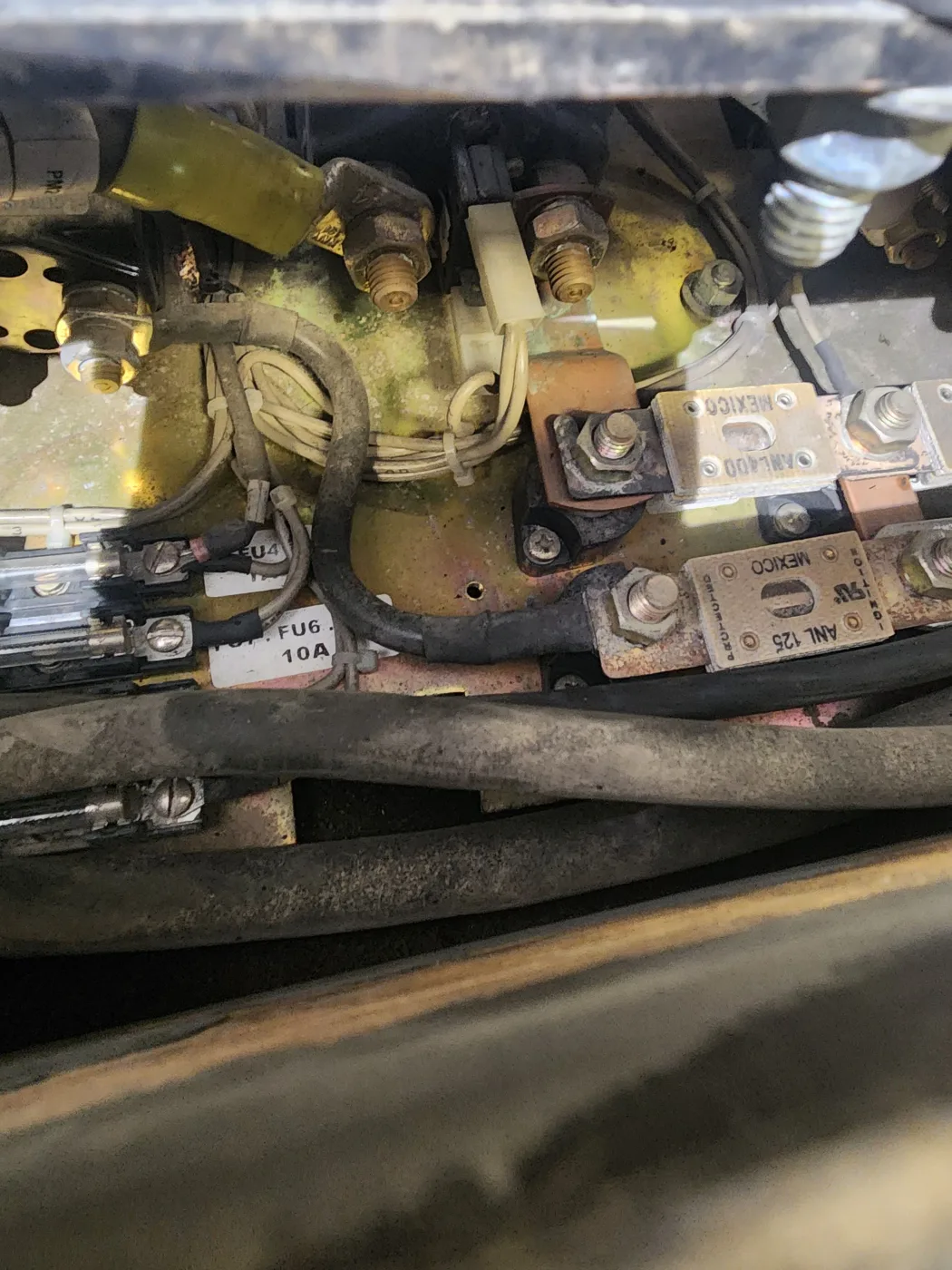

- Corrosion at high-current electrical connections
- Worn or inconsistent brush contact inside the pump motor
These findings had to be addressed before the motor itself could be fairly evaluated.
Why a connection can cause a motor to stall
A hydraulic pump motor can draw substantial current when the hydraulic system is working. A connection that appears acceptable with the machine sitting idle may behave very differently once that current begins flowing.
Corrosion, contamination or poor contact adds resistance to the circuit. Under load, that resistance can create a voltage drop before electrical power reaches the motor. The motor may run slowly, operate intermittently or stall even though the battery still shows voltage.
This is why checking voltage without operating the affected function may not reveal the complete problem. Voltage-drop testing is most useful while current is flowing through the circuit. Fluke notes that restrictions caused by corrosion, damaged wiring or poor connections can reduce motor performance and may cause a motor to slow down or stop.
A resistive connection may also generate heat. Loose or deteriorated connections can sometimes be identified through discoloration, damaged insulation or temperature differences, but appearance alone does not prove that a connection is healthy. Testing under the conditions that produce the complaint provides better evidence.
Why the motor brushes also matter
A brushed DC motor transfers electrical current to its rotating components through carbon or graphite brushes riding against the commutator.
Those brushes are wear items. Their contact can deteriorate as they wear, collect contamination or stop moving freely in their holders. Poor brush contact may create intermittent operation, reduced torque, arcing or a motor that stalls when the workload increases.
Brush condition cannot be judged only by confirming that a brush is still physically present. A proper inspection also considers how the brush contacts the commutator, whether it moves correctly in its holder and whether the contact surface shows abnormal wear.
Brush manufacturers and motor manufacturers establish model-specific service limits, so the correct specifications must come from the applicable service information. The general principle is consistent: brushed motors require periodic brush inspection and eventual brush replacement because the brushes wear during operation.
Diagnosing the circuit before replacing the motor
The documented repair followed a practical sequence:

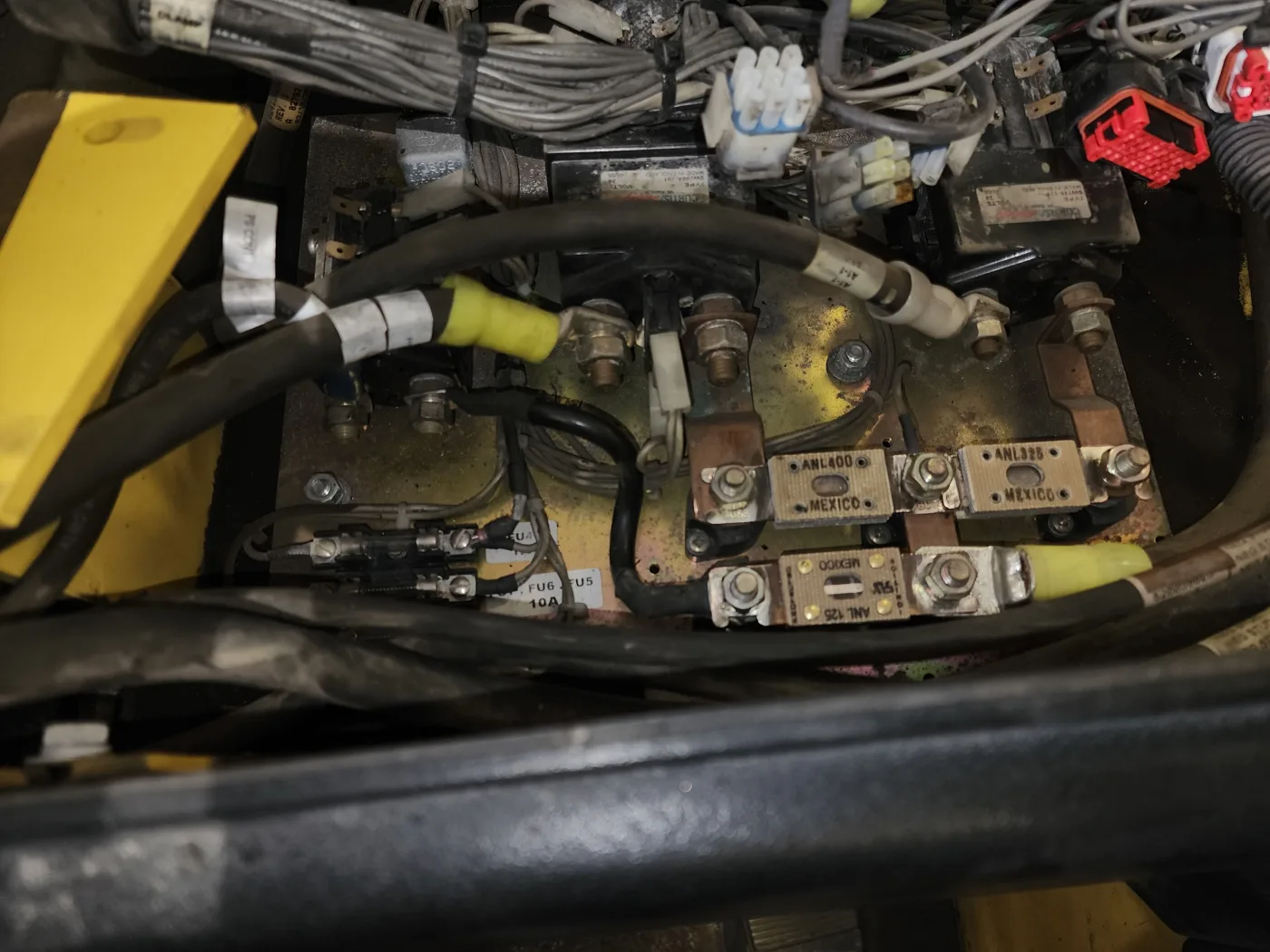

- Inspect the high-current distribution components and connections.
- Identify corrosion or other conditions that could restrict current flow.

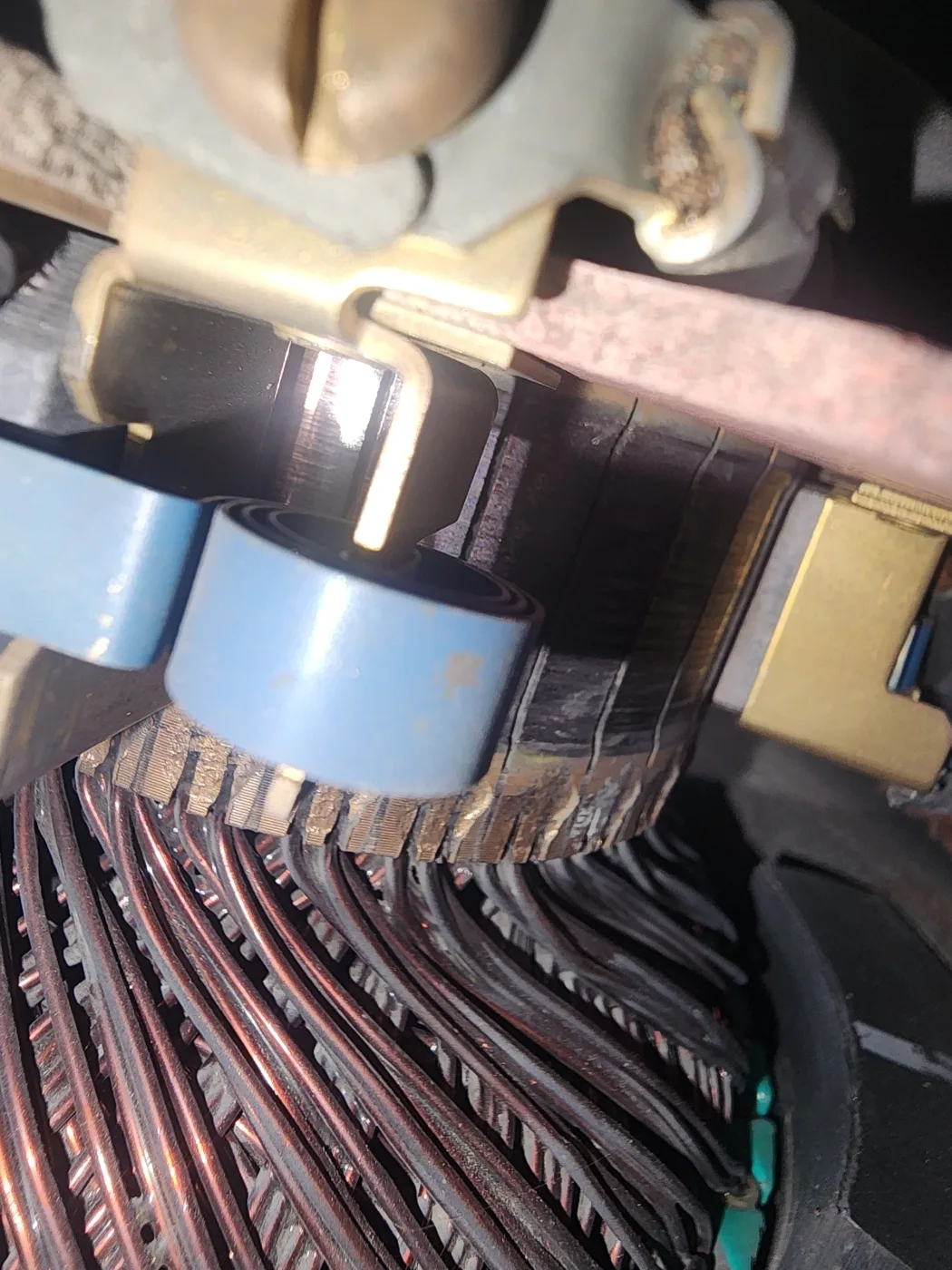

- Inspect the pump-motor brushes and their contact with the commutator.
- Clean the affected connections and contact areas.
- Reassemble the electrical and motor components correctly.
- Operate the hydraulic system under load to verify performance.
The final step matters. A motor may spin without load and still fail when hydraulic pressure increases. Verification must reproduce the operating condition that caused the complaint.
This approach also prevents one problem from hiding another. Cleaning a corroded connection may improve voltage delivery, but worn brush contact can still limit motor performance. Likewise, servicing the brushes will not correct resistance elsewhere in the battery cables, contactors or bus connections.
The complete electrical path has to work as a system.
Symptoms operators should report
Operators do not need to diagnose the electrical circuit, but accurate observations can shorten the troubleshooting process. Useful details include:
- Does the hydraulic function fail every time or only intermittently?
- Does the motor slow down, stop completely or make an unusual sound?
- Does the problem appear only while lifting a load?
- Do other electrical functions also weaken or shut down?
- Does the problem change as the machine warms up?
- Is there a hot-electrical smell or visible discoloration?
- Does cycling the key temporarily restore operation?
A hot smell, smoke, severe arcing or damaged high-current wiring should be treated as a reason to stop using the equipment. Battery-powered material-handling equipment contains high-current circuits capable of producing significant heat and arcing. Electrical covers and motor components should only be opened using the manufacturer’s safety and energy-isolation procedures.
What this repair teaches
The important lesson was not simply that corrosion was present or that the motor brushes required attention. It was that both conditions could imitate a failing hydraulic pump motor.
Replacing the motor first would not have corrected resistance elsewhere in the circuit. It also would have introduced a costly component before the supporting electrical path had been inspected and serviced.
Mondak Equipment & Hose approaches material-handling equipment as a complete system. A hydraulic complaint may require hydraulic testing, but it may also lead to battery cables, contactors, brushes, controls or other electrical components.
Our Williston shop handles forklift and order-picker electrical, hydraulic and mechanical troubleshooting. Mondak also operates a shop in Glendive and provides mobile equipment service around Dickinson, Bismarck and Billings.
If your forklift or order picker has a hydraulic pump motor that stalls, slows down or operates intermittently, contact Mondak with the equipment model and a clear description of what happens under load. The right diagnosis can prevent an electrical supply problem from being mistaken for a failed motor.
