Wacker Neuson Hydraulic Repair: Why DIN Light Series Fittings Matter

Then you tilt the cab.

Once the cab is opened up, you can see how tightly the hydraulic hoses, hard lines, wiring and components are packed into the articulation area. Oil can travel a long way from the actual failure point, so tracing the leak and identifying the correct hose is the first part of the job.

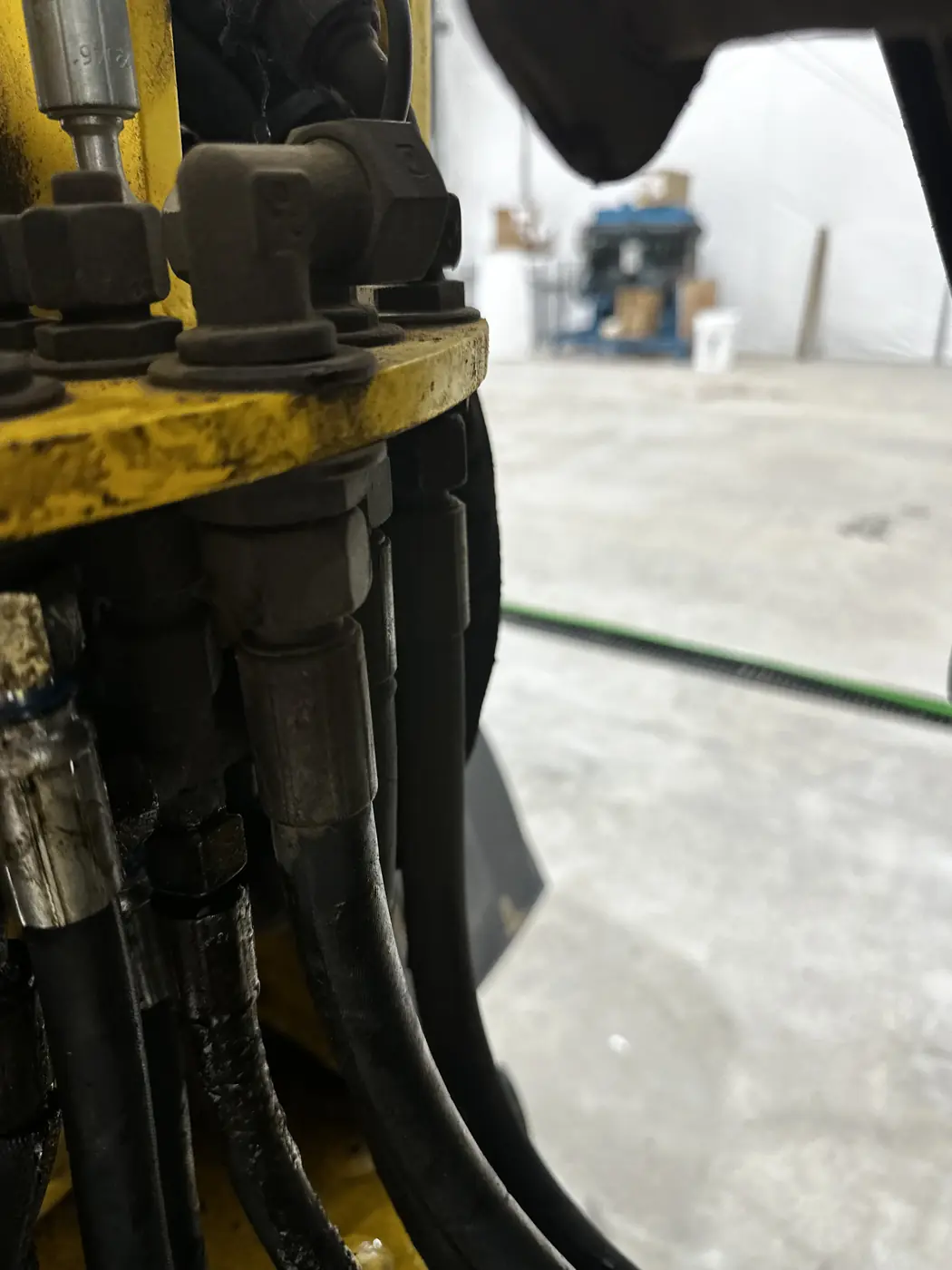

On this machine, the hydraulic hoses used DIN Light Series crimp fittings.

That is an important detail.

What Is DIN Light Series?

DIN hydraulic fittings are common on European-built equipment, including machines from manufacturers such as Wacker Neuson and many other German and European equipment brands.

"DIN" refers to a standardized European fitting system. Within that system there are different series, including Light Series and Heavy Series.

Light Series, often identified as L-series, is commonly used on hydraulic circuits where the pressure and application call for the lighter fitting configuration. Heavy Series, or S-series, is built for higher-pressure applications.

The two may look similar at first glance, but they are not interchangeable.

The tube size, metric thread, fitting body and sealing arrangement all have to match the original application.

That is why identifying the fitting correctly matters before building the hose.

The Hose Is Only Half the Repair

A lot of hydraulic shops can make a hose.

The bigger question is whether they have the correct crimp fitting sitting on the shelf.

Many shops primarily stock the fittings most commonly used on North American equipment, such as:

• JIC
• ORFS
• NPT

Those fittings cover a huge number of machines, but they do not cover everything.

European construction equipment frequently brings in metric and DIN-style connections. If the correct crimp end is not available, a simple hose failure can turn into several days of downtime while fittings are ordered.

That is why Mondak Equipment carries a much broader selection of hydraulic crimp fittings.

We regularly stock fittings for applications using:

• DIN Light Series
• DIN Heavy Series
• BSPP
• Metric connections
• JIS
• Komatsu-style connections
• JIC
• ORFS
• NPT

Our focus is primarily on having the correct crimp hose ends available so we can duplicate the original hose as closely as possible.

Why We Prefer the Correct Crimp End

Sometimes a hydraulic hose can be made to work by stacking adapters together.

That does not automatically mean it is the best repair.

Every additional adapter adds another threaded connection, another potential leak point and more physical length to the hose assembly. On a machine like this Wacker Neuson, where hoses are already packed tightly around the articulation joint and underneath the cab, extra fittings can also create clearance and routing problems.

When the correct crimp fitting is available, we can build the replacement hose much closer to the original configuration.

That helps maintain proper routing, bend radius and clearance while reducing unnecessary connections.

Access Is Part of the Job

The pictures from this repair also show another side of hydraulic work that is easy to overlook.

Sometimes replacing the hose is not the difficult part.

Getting to it is.

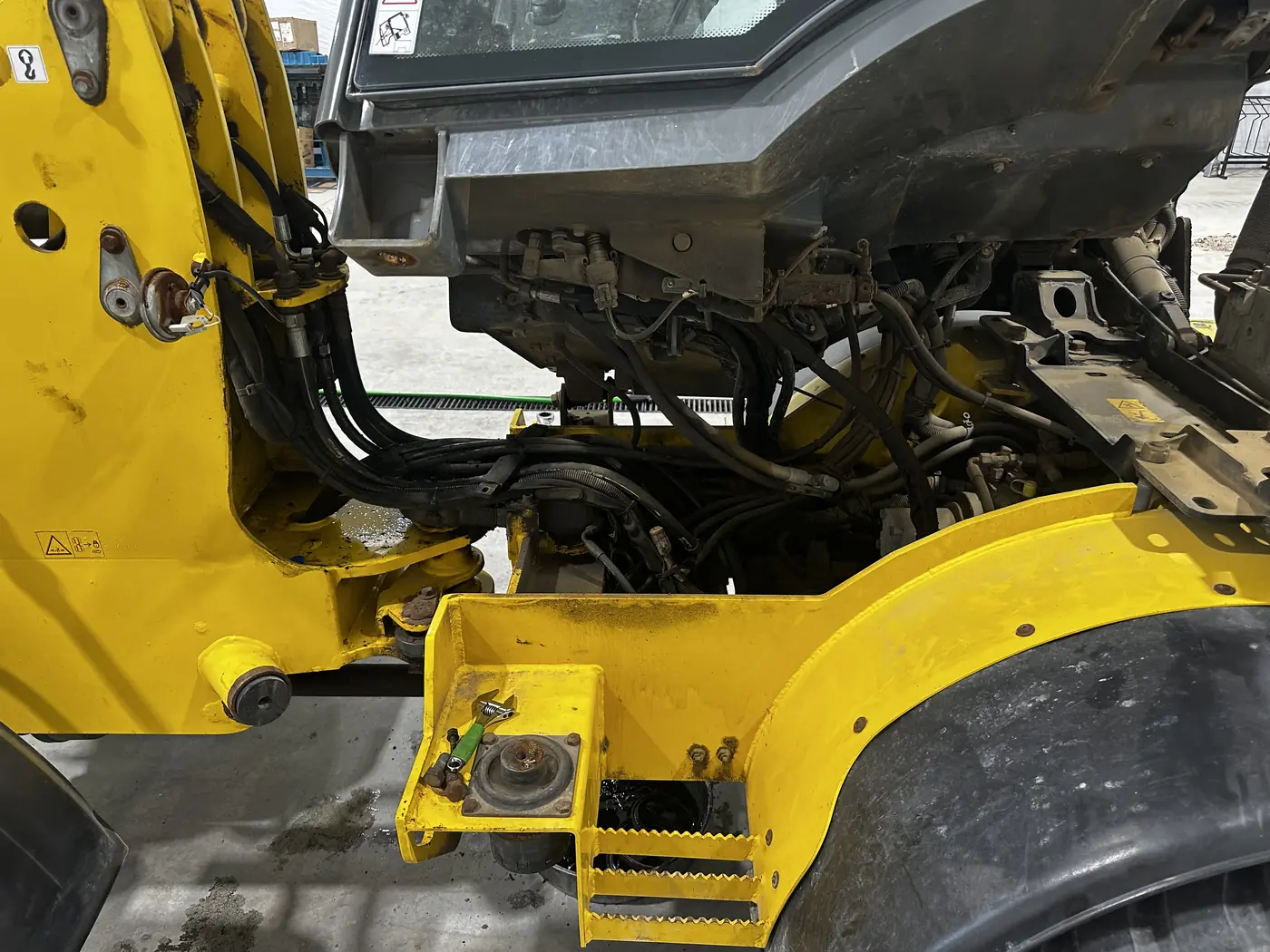

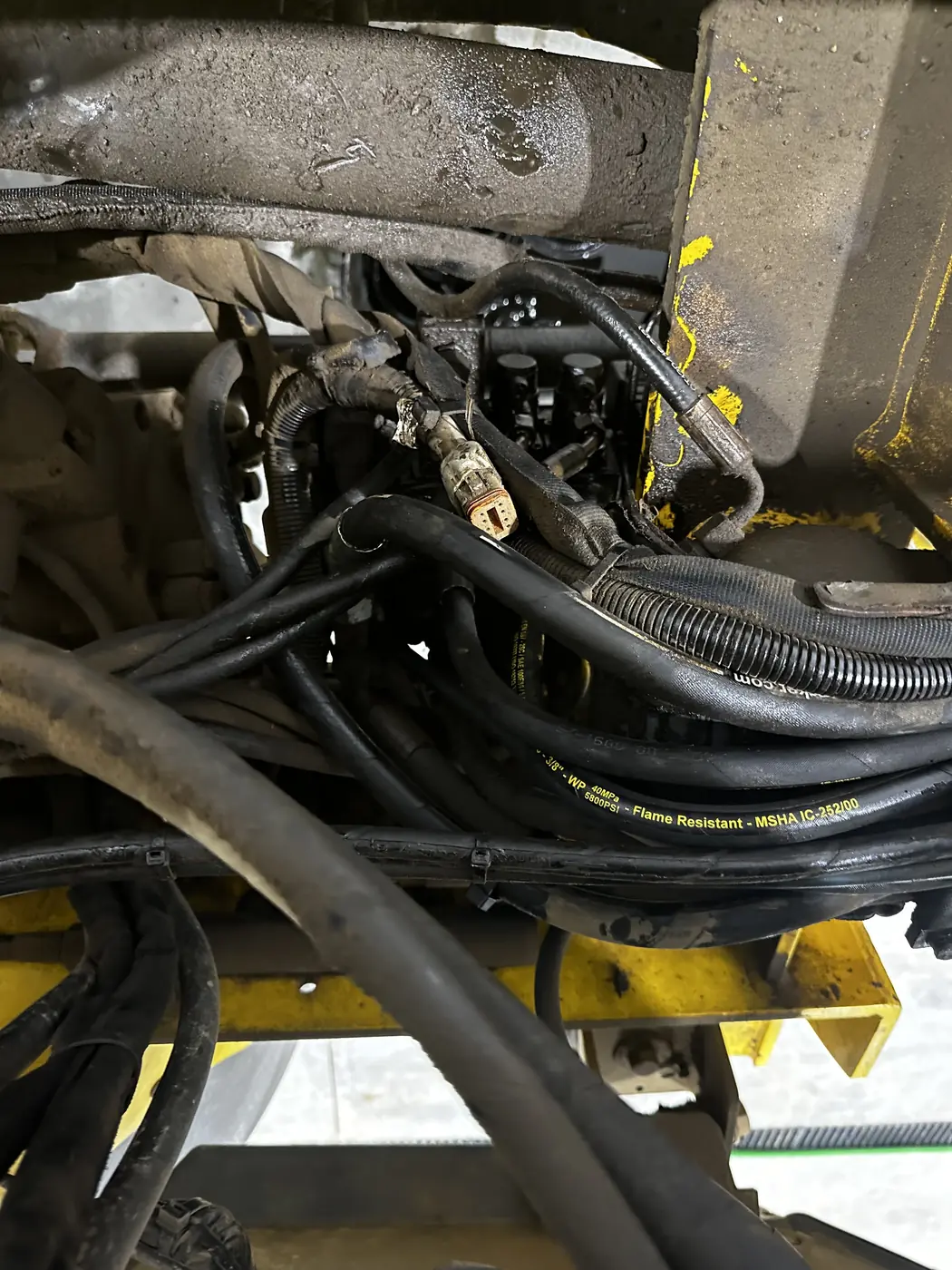

This Wacker Neuson required the cab to be tilted to properly access the hydraulic system. Once opened up, there are hoses running through and around the articulation area, control components, electrical harnesses and hard lines all competing for space.

That is why hydraulic repair is more than cutting a hose to length and crimping two ends on it.

You have to understand where the hose runs, what it connects to, how it moves with the machine and what type of connection the manufacturer originally used.

Having the Right Fitting Keeps Equipment Moving

A failed hydraulic hose should not turn into extended downtime because the fitting is unusual.

This Wacker Neuson happened to use DIN Light Series, but we see many different connection styles across construction equipment, forklifts, oilfield equipment, cranes, aerial equipment and industrial machinery.

Having the correct crimp fittings on hand means we can often build the hose without waiting for specialty components to arrive.

For the customer, that comes down to one thing:

Less downtime.

The goal is not to find something that can be adapted enough to work.

The goal is to identify the connection correctly, duplicate the hose correctly and get the machine back to work with a repair that fits the system the way it was intended.

Metric hydraulics and DIN fittings are not unusual to us. They are part of the equipment we work on every day.
