Forklift Coolant Leak: Finding the Source Before Replacing Parts
A puddle under a forklift tells you something needs attention. It does not tell you which part has failed. Coolant can collect on a pan or run along an engine surface before it reaches the floor, making the wettest visible area a poor guide to the original leak.
In a recent Yale forklift repair, Mondak Equipment & Hose traced a coolant leak to the water pump's weep hole. Replacing the pump required considerably more than removing a hose and fitting a new part. Access, engine timing, radiator connections, coolant filling and final operating checks all formed part of the repair.
The job offers a practical lesson for equipment owners: identify where fluid is escaping, understand what must be disturbed to reach it, and verify the complete machine after reassembly.
Finding where the coolant actually started
The service began with an inspection and cooling-system pressure test. The technician observed coolant collecting at the front of the drain pan, then traced it back to the water pump's weep hole. That established the repair location instead of assuming the radiator or a nearby hose was responsible.
A pressure test can help make an external leak visible without relying only on a puddle left after operation. The test method and pressure must follow the applicable equipment specifications. It is a diagnostic step, not a reason to replace every component that happens to be wet.
On this job, the documented finding was coolant escaping from the pump. The notes do not establish contamination, incorrect coolant or a previous installation mistake as the cause, so those explanations should not be presented as facts about this machine.

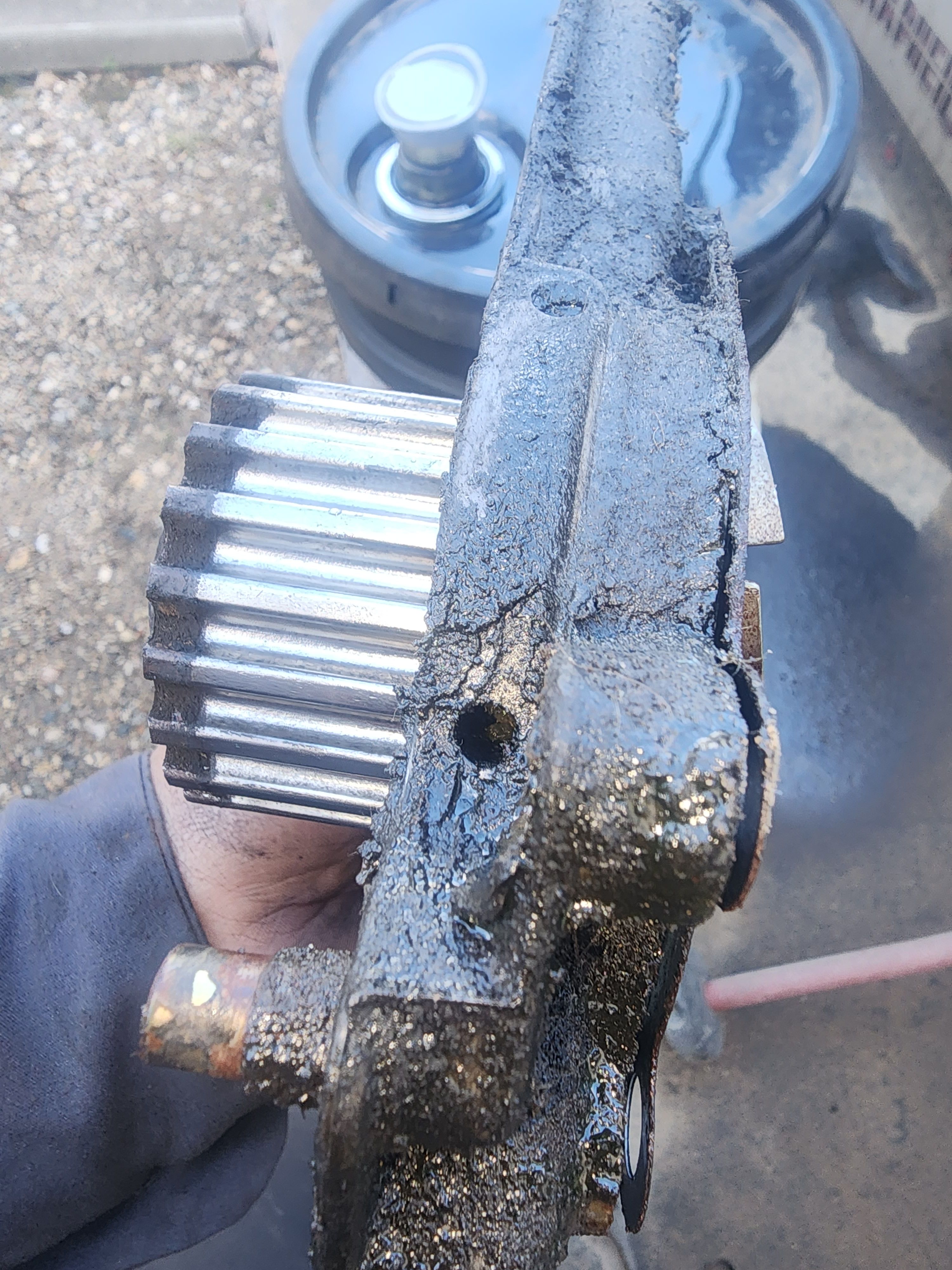

What a water-pump weep hole can tell you
A mechanical water pump contains a rotating shaft, bearings and a seal separating the coolant from the bearing area. The weep arrangement provides a path for leakage to become evident rather than remaining hidden inside the assembly.
Gates explains that a small amount of initial seepage can occur while a new pump's seal beds in. Continued or pronounced leakage is a different condition and calls for diagnosis. A trace on a newly installed pump and an established pump actively dripping coolant should not automatically receive the same interpretation.

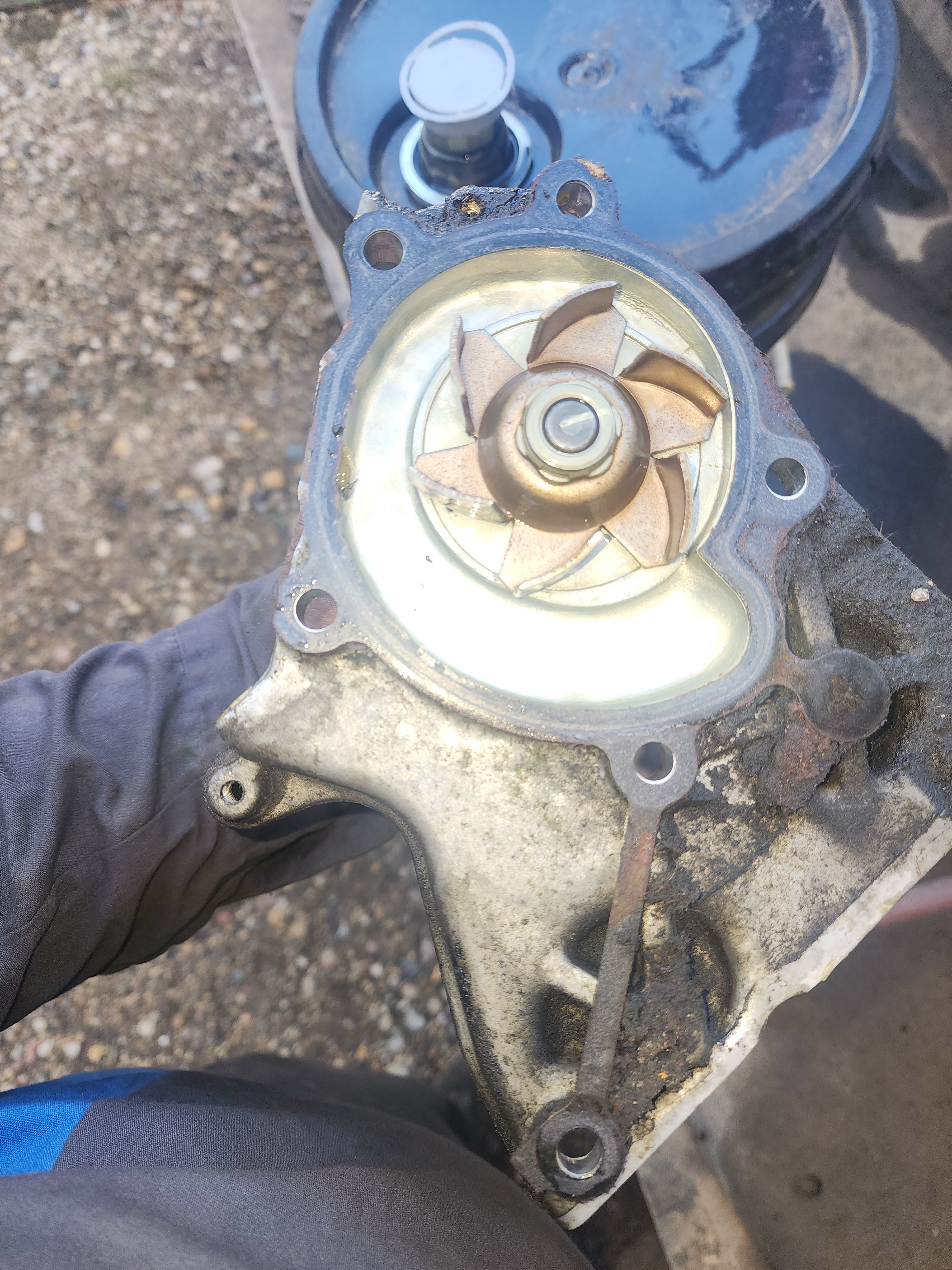

The opening is not something to plug to make the symptom disappear. The useful question is why coolant is reaching it and what repair is needed. In this case, the observed leak led to replacement of the pump and its gasket.
Why access can be a large part of the work
Forklift engine compartments can place several systems around a relatively small component. On this machine, the seat and battery were removed for access. The radiator supports, fan shroud and fan hub also had to come apart. The fan and hub were seized together and required separation.
Coolant was drained, transmission-cooler lines were disconnected and capped, and the radiator hoses and radiator were removed. Timing covers and related drive components then had to be removed before the water pump could be reached.
That sequence explains why the cost and time of a water-pump repair cannot be judged by the pump alone. The technician must gain access without creating additional damage, keep track of the removed parts and restore every connection correctly. A component that appears simple on a parts diagram can require substantial work once installed inside the machine.
Timing work requires its own checks
The service notes record setting the timing marks before removing the timing belt, tensioner and idler. After installing the new pump and gasket, the timing components were reinstalled. The engine was rotated manually several times to check timing, and belt tension was set before the covers were refitted.
Timing components need particular attention because they control the relationship between rotating engine parts. Continental's technical guidance explains that the timing belt synchronizes crankshaft and camshaft movement, and that incorrect valve timing can cause poor operation or engine damage.
That general explanation is not a substitute for the engine's own service procedure. Correct parts, timing marks, installation methods and tension specifications must come from the applicable manufacturer information. The point for an owner is that a cooling-system repair may also involve precision engine work that needs separate verification.
Reassembly includes everything removed for access
After the pump work, the crank pulley and fan hub were reinstalled. The radiator was returned to its mounts, the transmission-cooler lines were reconnected, and the fan, shroud, supports and radiator hoses were refitted. A broken shroud screw was replaced during reassembly.
The battery terminals were cleaned and reconnected, the battery hold-down was restored, and the harness connections were checked before the seat went back on. These details are easy to overlook when the repair is described only as a water-pump replacement.
Every removed hose, wire, support and fastener becomes part of the final inspection. A successful pump installation still needs sound surrounding connections. Otherwise, a loose hose or missed electrical connection can create another complaint even though the replacement component itself is working.
Filling and checking the cooling system
The technician vacuum-filled the cooling system with fresh coolant, completed the radiator fill and filled the overflow container. The forklift was then started and allowed to reach operating temperature while the work area was cleaned and the repair was observed.
The recorded result was stable operating temperature with no further leaks, and the machine was documented as ready to return to service. That is the outcome established by the job notes. It is not a claim of a long-term test or a guarantee against unrelated future cooling-system problems.
Continental's cooling-system guidance emphasizes the correct coolant and bleeding procedure. Filling the system is part of the repair, rather than an incidental step after the mechanical work is finished. The applicable coolant specification and filling method matter as much as getting the level back up.
What operators should report
Owners can help by reporting recurring coolant loss, fresh drips and changes in the temperature indication promptly. Note when the symptom appears and whether coolant has recently been added. Give the technician the machine model and an accurate description rather than only a guess at the failed component.
Logisnext's forklift inspection guidance includes checks for coolant leaks, coolant level and fan-belt condition. Follow the machine's inspection instructions and report defects through the site's established process. Inspect only when it is safe, and allow the cooling system to cool before checking service points that could release hot coolant.
Mondak Equipment & Hose operates shops in Williston, North Dakota, and Glendive, Montana, with regional mobile service around Dickinson, Bismarck and Billings. If a forklift is losing coolant, contact Mondak to arrange diagnosis and repair. Finding the source and checking the surrounding systems helps turn a parts replacement into a complete repair.
