Truck Alternator Bearing Failure: Why Pulley Installation Matters
A truck alternator that can be shaken by hand is not a minor charging-system complaint. By that point, the problem may involve the alternator bearings, pulley, belt drive and mounting, not just electrical output.
A recent mobile truck repair near Beach, North Dakota, involved an International 4300 that was down with a visibly loose alternator. Inspection found that the alternator bearings had failed. The repair also uncovered evidence suggesting the pulley may not have been installed correctly during an earlier repair.
That distinction matters. Replacing a failed alternator can get the truck running again, but understanding what may have contributed to the failure helps protect the replacement and the rest of the belt-drive system.
What the service notes documented

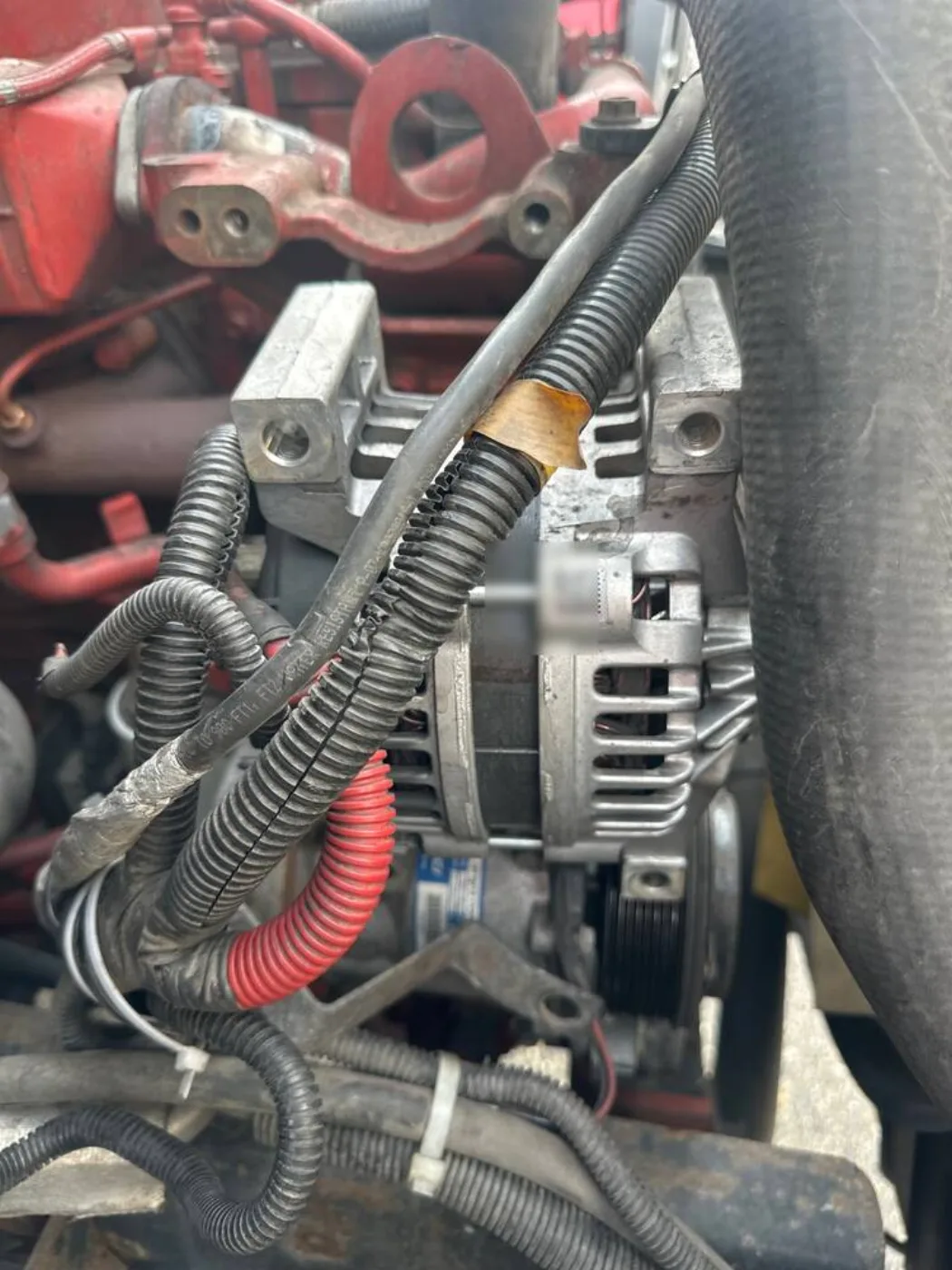

The truck was inspected at its breakdown location. The alternator was loose enough that movement could be seen and felt at the unit. Further inspection confirmed failed alternator bearings.
The battery was disconnected before removal. Because access was limited, the charge-air-cooler hose had to be removed before the electrical connections and four alternator mounting bolts could be reached. The alternator was then removed from the engine.
The pulley was excessively tight on the old alternator shaft and could not be removed normally. A press was required to separate it from the shaft.
The physical condition suggested the pulley may previously have been hammered onto the alternator or installed using an impact tool. That may have contributed to the bearing failure, but the work order does not prove one single cause. There was no teardown or laboratory analysis that could establish exactly when or how the bearing damage began.
That careful wording is important. The evidence justified correcting the pulley installation during the repair, but it would be inaccurate to present a suspected contributing factor as a proven cause.
Why alternator pulley installation is more important than it looks
The pulley transfers engine rotation from the serpentine belt to the alternator rotor. That sounds simple, but the pulley, shaft, spacer components, bearings and retaining nut must work together as an assembly.
For the 24SI and 28SI alternator family, Delco Remy specifically instructs installers to slide the pulley onto the shaft by hand rather than hammering it into place. The manufacturer also warns against starting the pulley nut with an impact wrench because either practice can damage the pulley or bearings.
Delco Remy also specifies keeping the alternator horizontal during pulley installation, maintaining the correct order of the spacer washer and bearing slinger, and tightening the pulley nut with controlled torque. Those steps help ensure that the pulley is fully seated without applying unintended force to the rotor or bearings.
The alternator used on this repair was documented as a 28SI unit. The technician transferred the pulley to the replacement alternator and secured the hardware to the required specifications. The service notes do not record an exact torque value, so none should be invented for the job story.
The belt drive has to be treated as a system
An alternator does not work alone. The crankshaft pulley drives the serpentine belt, and the belt turns the alternator along with other accessories. Pulley alignment, belt routing and belt tension affect how smoothly that system operates.
A pulley that is not seated correctly can place the belt out of alignment. Incorrect tension, damaged pulley grooves or a worn tensioner can also create noise, vibration, heat and added bearing load.
Gates technical guidance recommends inspecting the complete accessory-drive system because a new belt can fail early if a pulley, alignment or tension problem remains. Its guidance also identifies excessive vibration, heat and improper belt tension as possible contributors to premature pulley-bearing or accessory-component failure.
That is why a serpentine belt should not be installed by routing it from memory and assuming it is correct. The belt needs to follow the proper path, sit correctly in every grooved pulley and track squarely after startup.
On this International 4300, a new serpentine belt was installed after the alternator replacement. The routing and alignment were checked before the repair was completed.
Access and reassembly are part of the repair
Modern truck engine compartments are crowded. Components removed for access must be restored correctly even when they were not responsible for the original failure.
In this case, removing the charge-air-cooler hose was necessary to reach the alternator. After the new unit was installed, the electrical connections were reattached, the CAC hose was reinstalled, the battery was connected and the battery-box cover was put back in place.
Those steps may sound routine, but skipped clamps, loose electrical connections or a hose left slightly out of position can create a second problem after the truck leaves. A complete repair includes verifying everything disturbed during access, not just the component listed on the parts invoice.
What operators may notice before complete failure
Alternator-bearing and belt-drive problems do not always begin with a charging warning. Operators and fleet managers should report symptoms such as:
- A growling, grinding or chirping noise from the belt area
- Visible alternator or pulley movement
- A belt that walks toward the edge of a pulley
- Repeated belt wear or fraying
- A burning-rubber smell near the engine
- Intermittent charging warnings or low system voltage
- A tensioner that bounces excessively
- Vibration that changes with engine speed
These symptoms do not automatically prove that the alternator has failed. An idler, tensioner, water pump, air-conditioning compressor or another belt-driven component may produce similar noise or movement. The correct approach is to shut the truck down safely and inspect the complete accessory drive.
Continuing to operate with a visibly loose alternator risks more than losing battery charging. A damaged or derailed belt may also affect other belt-driven systems, depending on the engine configuration.
Verification matters after the part is installed

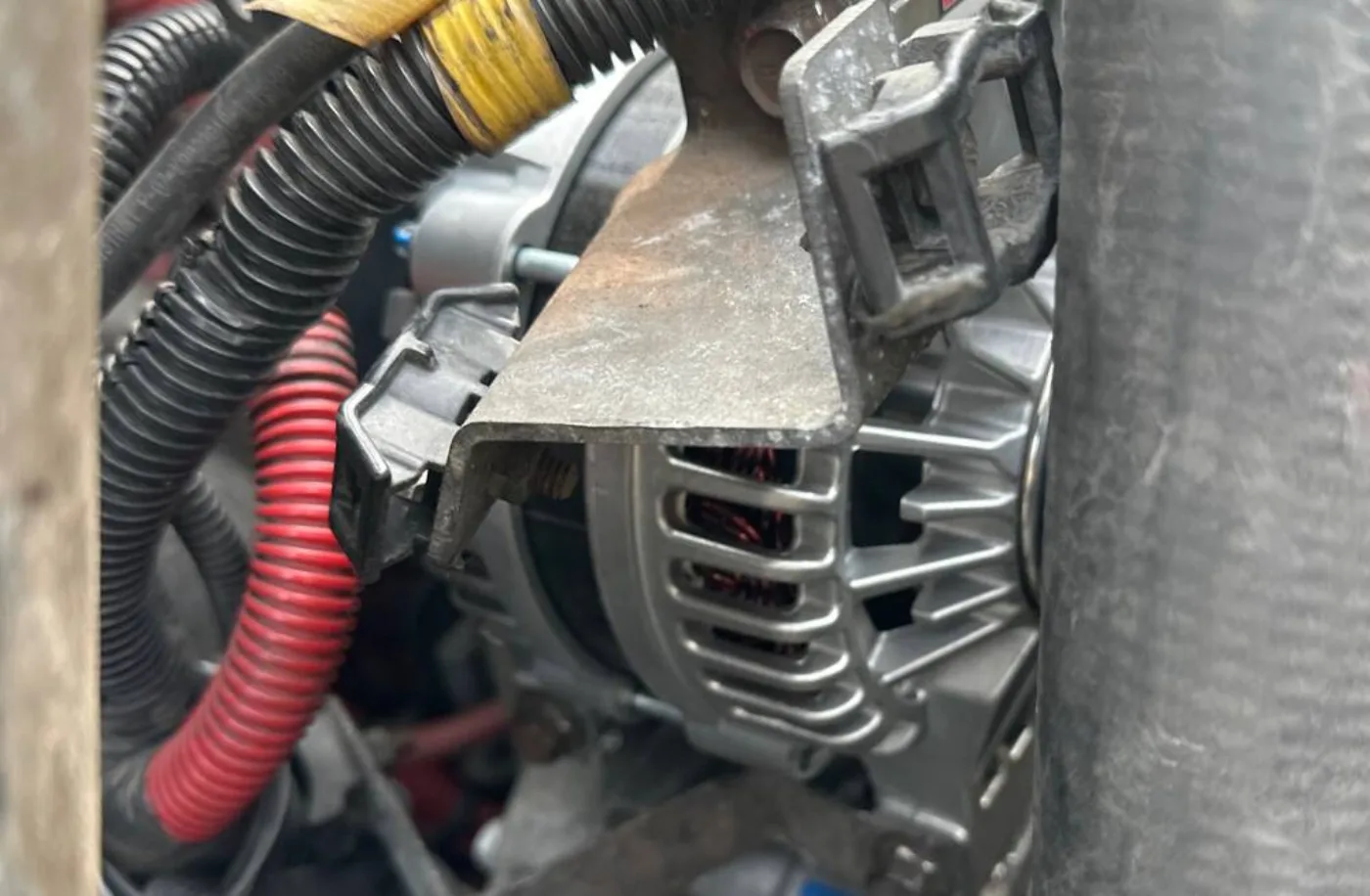

The replacement alternator was secured with all four mounting bolts. Its electrical connections were restored, the pulley was installed correctly and the new belt was routed and aligned. The removed access components were reinstalled, and the truck was documented as ready to return to service.
The lesson from this repair is not that every bearing failure comes from a bad pulley installation. It is that the condition of the pulley, shaft, belt and mounting system should be evaluated when an alternator fails mechanically.
If the original alternator is replaced without checking those related components, the condition that contributed to the first failure may remain in place.
