Railcar Mover Relay Valve Replacement: Check Fit Before Installation

A recent Mondak repair on a Trackmobile Hercules railcar mover illustrates that point. The assignment was to install a new relay valve. During the first visit, the replacement's delivery ports were found to be too small for the existing connections. Completing the job required resolving that mismatch before installing the replacement assembly.

What the first visit revealed

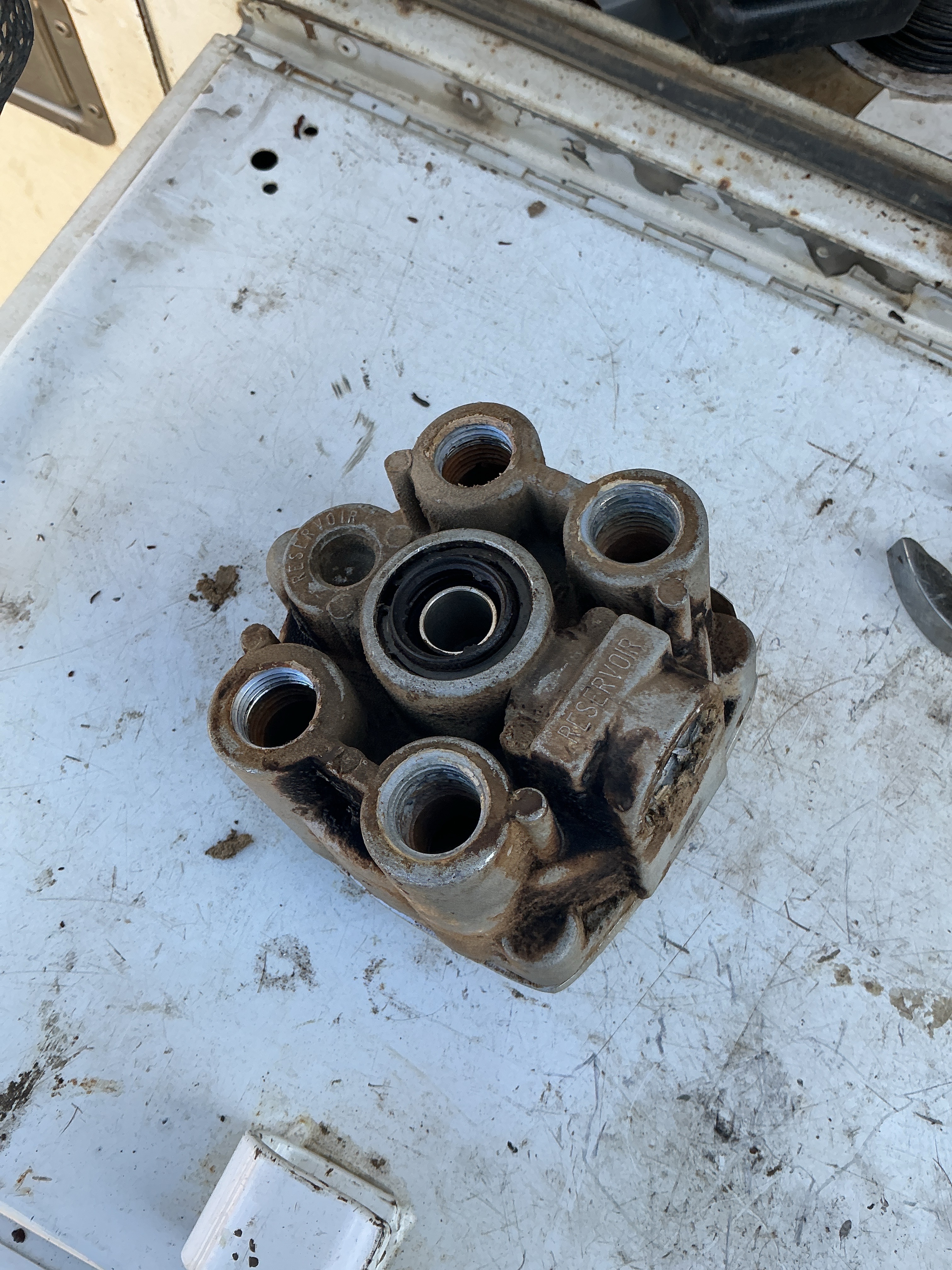

The original relay valve had five air lines and a sensor connected to it. Those connections had to be removed to take the valve off the machine and compare it with the replacement.

That comparison exposed the port-size difference. The fittings needed to complete the installation were not available locally during that visit. Comparing the internal components also showed that the two valve assemblies were not internally interchangeable.

The original valve was reassembled and reinstalled, with all five air lines and the sensor reconnected. The customer was told what had prevented completion. The replacement work was finished on a later visit, after the installation requirements had been addressed.

The useful lesson is straightforward: confirming that a part belongs to a familiar product family is only the beginning of checking whether it fits the actual machine.

Why port size is only one part of compatibility

An air-system component needs to fit both the plumbing and its intended function. A valve's external shape does not establish that its ports, mounting or operating characteristics match another valve.

Bendix's relay-valve reference information, for example, distinguishes versions by delivery-port size, crack pressure and mounting bracket. Its replacement instructions also distinguish control, supply and delivery connections. These are general examples of why a relay-valve match needs more information than appearance alone; they do not identify the valve fitted to this particular Trackmobile.

For the repair planner, that means collecting the machine's identification privately, the original component information, clear connection photographs and the fitting requirements before ordering. The equipment and component manufacturers' instructions should guide the final selection.

A reducer that makes a threaded connection possible does not, by itself, confirm that the complete valve is suitable. Part selection must also account for the required function and the installation specified for the machine.

Completing the replacement

On the return visit, the machine's air system was drained before the relay valve was removed. The five air lines and the sensor were disconnected, and the original valve was taken off the machine.

The existing fittings and plugs were transferred to the replacement valve, with thread sealant applied as recorded in the service notes. The old mounting bracket was removed and replaced with the bracket supplied with the new valve. The replacement valve was then mounted, and all five air lines and the sensor were reconnected.

After the area and tools were cleaned up, the machine was started and its operation was tested. The completed service notes recorded that everything was operating normally.

That sequence matters because the repair involved more than exchanging the valve body. The connections, sensor and mounting hardware all had to be restored as part of the finished assembly.

Treat the mounting arrangement as part of the job

A mounting bracket can be easy to overlook when a parts request focuses on the valve itself. On this repair, replacing the bracket was an actual part of completing the installation.

During planning, the service team should compare the replacement's mounting arrangement with the available space and existing connections. A supplied bracket may change how the component sits relative to its lines. That is a reason to check the installation instructions and layout before the machine is taken apart.

The same planning principle applies to sensors and plugs. Every connection disturbed during removal needs to be accounted for during reassembly. Photographs and a connection record can help the service team keep track of those details without relying on memory.

Installation and verification are separate steps

The final operating check is where an installed component becomes a tested repair. In this case, the documented outcome was normal machine operation after the replacement valve, bracket, air lines and sensor were installed.

General manufacturer guidance adds useful context. Bendix's instructions for its own replacement relay valves call for operating checks and checking fittings for leakage before returning the vehicle to service. The applicable machine and valve instructions determine the checks required for a particular installation.

Those general requirements should be kept separate from what a specific job record actually proves. This repair's notes document a successful operating test; they do not provide individual pressure readings or a detailed brake-test report. A useful service summary should describe the recorded result accurately rather than adding measurements that were never recorded.

For equipment owners, asking for the installation findings and the verification result helps make the repair easier to understand. It also leaves a clearer starting point if a separate concern develops later.

What to have ready before a service visit

When arranging a similar repair, provide the service team with the machine make and model, the complaint, the original valve information and photographs showing the connections and bracket. Share identifying information directly with the shop rather than posting it publicly.

Explain whether the problem is constant or intermittent and whether any parts have already been changed. If someone has ordered a replacement, include its full part information so compatibility can be checked before the technician travels.

Agree on access to the machine and the time available for service. A railcar mover may need to be made available between operating tasks, and the service team needs enough time to isolate the system, complete the installation and perform the required checks.

The main lesson from this repair is practical: verify the replacement, plan the connections and mounting, then test the completed work. That approach helps keep a parts mismatch from becoming a rushed field modification.

Mondak Equipment & Hose supports material-handling, hydraulic and equipment repair through its Williston shop. Mondak Equipment's Glendive shop supports truck, trailer, hydraulic and equipment repair. Regional mobile service also serves markets around Dickinson, Bismarck and Billings; these are service areas, not additional shop locations. Contact Mondak to discuss the machine, its symptoms and the right service arrangement.
